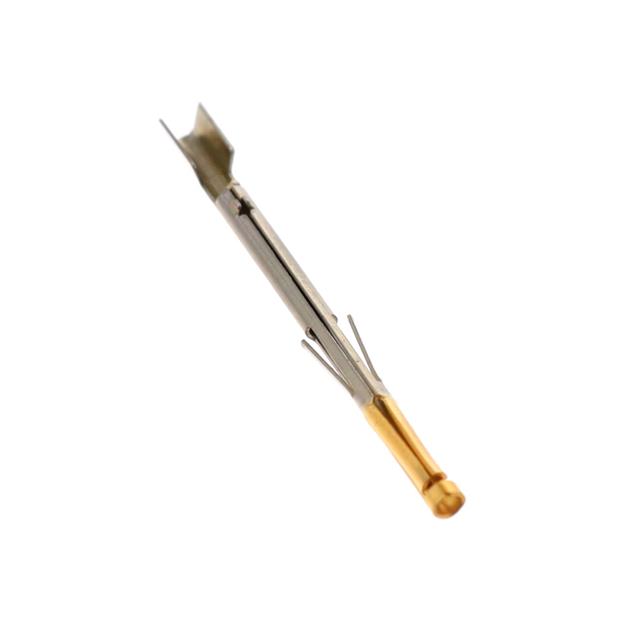

ASSP-05-F-A-C-SB

Active

Amphenol LTW

ACC, XLOK, TERMINAL

Search across all available documentation for this part.

Active

Amphenol LTW

ACC, XLOK, TERMINAL

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Type	Contact Material	Type	Contact Termination	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]
Amphenol LTW ASSP-05-M-A-C-RE	20 AWG	22 AWG	Pin	Phosphor Bronze	Signal Stamped	Crimp	0.5 mm²	0.34 mm²
Amphenol LTW ASSP-05-F-A-C-SB			Socket		Signal Stamped	Crimp
Amphenol LTW ASSP-05-M-A-C-SA			Pin		Signal Stamped	Crimp
Amphenol LTW ASSP-05-M-A-C-SB	20 AWG	22 AWG	Pin	Phosphor Bronze	Signal Stamped	Crimp	0.5 mm²	0.34 mm²
Amphenol LTW ASSP-05-F-A-C-RE	20 AWG	22 AWG	Socket	Phosphor Bronze	Signal Stamped	Crimp	0.5 mm²	0.34 mm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Socket Contact Size Crimp
