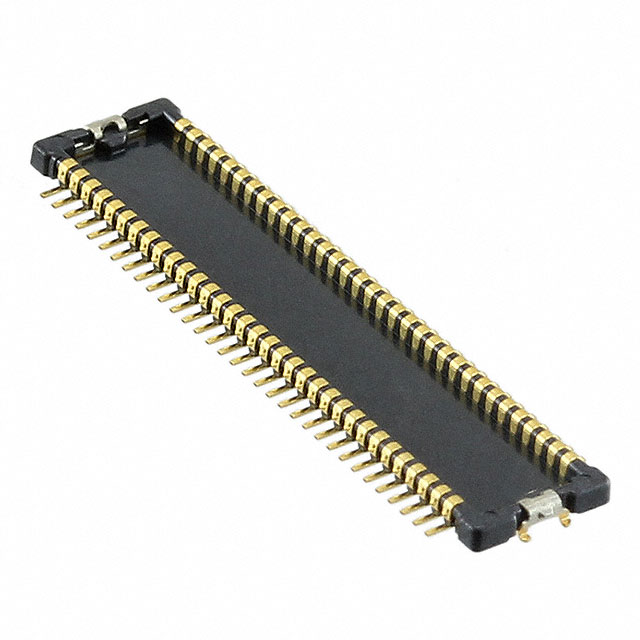

AXK8L66124BG

Active

Panasonic Electric Works

CONN HDR 66POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 66POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXK8L66124BG

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board	0.63 mm
Height Above Board	0.025 in
Mated Stacking Heights	0.9 mm
Mounting Type	Surface Mount
Number of Positions	66
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Number of Rows	Features	Contact Finish	Number of Positions	Mounting Type	Connector Type	Height Above Board	Height Above Board	Mated Stacking Heights	Pitch [x]	Pitch [x]
Panasonic Electric Works AXK8L66124BG	2	Solder Retention	Gold	66	Surface Mount	Header Outer Shroud Contacts	0.63 mm	0.025 in	0.9 mm	0.016 in	0.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

66 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
