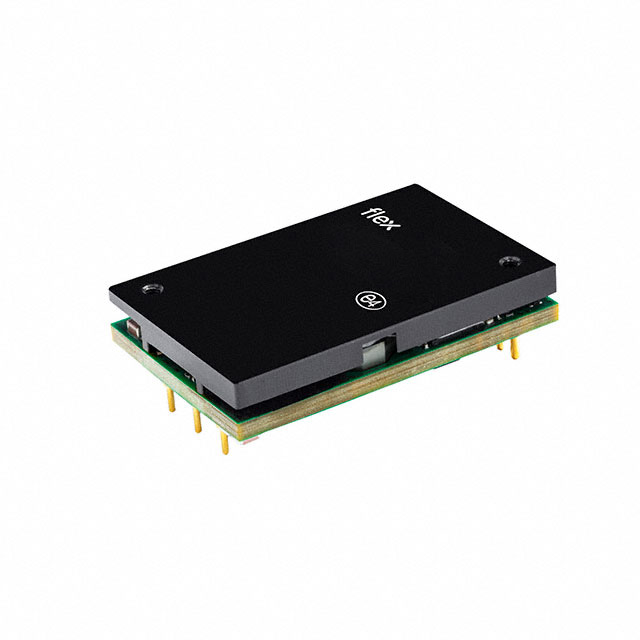

PKM4817LNHPIHS
ActiveFlex Power Modules
DC DC CONVERTER 10.8V 864W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKM4817LNHPIHS
ActiveFlex Power Modules
DC DC CONVERTER 10.8V 864W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PKM4817LNHPIHS |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 80 A |
| Efficiency | 96.9 % |
| Features | Remote On/Off, Baseplate |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 864 W |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [z] | 0.56 " |
| Size / Dimension [z] | 14.3 mm |
| Standard Number | 62368-1 |
| Supplier Device Package | Quarter Brick |
| Type | Intermediate Bus Converter |
| Voltage - Input (Max) [Max] | 60 V |
| Voltage - Input (Min) [Min] | 40 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 10.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 93.70 | |
| 5 | $ 90.21 | |||
| 10 | $ 88.75 | |||
| 25 | $ 88.34 | |||
Description
General part information
PKM481 Series
Intermediate Bus Converter DC DC Converter 1 Output 10.8V 80A 40V - 60V Input
