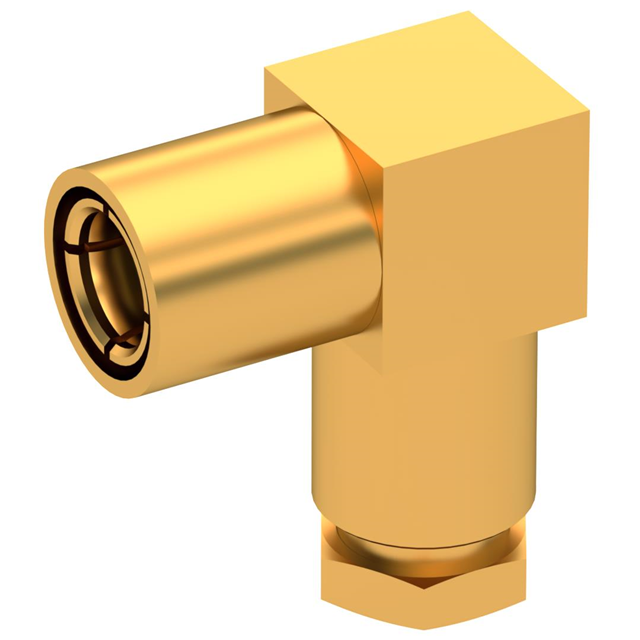

2005-1541-010

Active

Radiall USA, Inc.

SMB F RA SDCL .086

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB F RA SDCL .086

Technical Specifications

Parameters and characteristics for this part

Specification	2005-1541-010

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	335 V

SMB F RA SDCL .086

Part	Voltage Rating	Mating Cycles	Frequency - Max [Max]	Housing Color	Connector Type	Dielectric Material	Cable Group	Shield Termination	Number of Ports	Connector Style	Body Finish	Center Contact Plating	Impedance	Body Material	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type	Fastening Type
Radiall USA, Inc. 2005-1541-010	335 V	500	4 GHz	Gold	Female Socket, Plug	Polytetrafluoroethylene (PTFE)	RG-405 (.085" Semi Rigid)	Clamp	1	SMB	Gold	Gold	50 Ohms	Brass	Beryllium Copper	-65 ░C	105 ░C	Solder	Free Hanging (In-Line), Right Angle	Snap-On

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder

Technical documentation and resources

No documents available
