W7281-4PG-P-300

Active

Conxall/Switchcraft

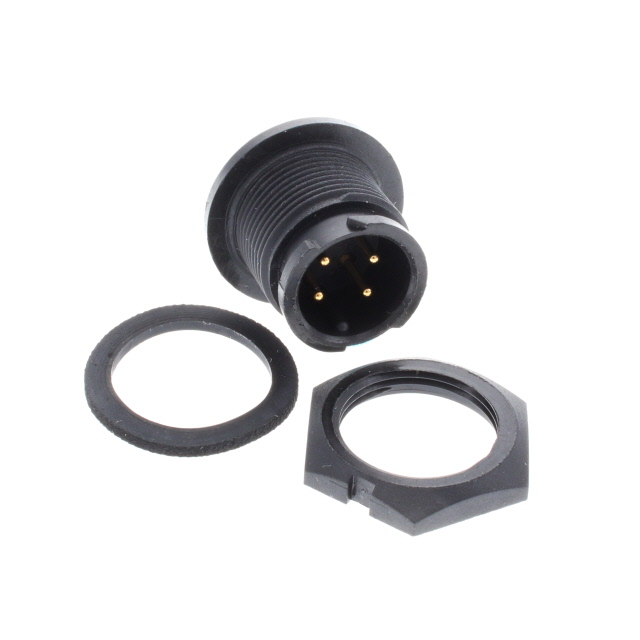

CONN RCPT MALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD SOLDER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 7.19

General part information

4 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	W7281-4PG-P-300	W7281-4 Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic	Thermoplastic
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Female Sockets, Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	UV Resistant	UV Resistant
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Thermoplastic	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder
Voltage Rating	300 VAC	300 VAC

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Fastening Type	Applications	Number of Positions	Orientation	Current Rating (Amps)	Mounting Type	Connector Type	Primary Material	Contact Material	Ingress Protection	Backshell Material, Plating	Mounting Feature	Shielding	Voltage Rating	Insert Material	Features	Color
Conxall/Switchcraft W7281-4SG-P-3ES	Solder	85 °C	-40 °C	Gold	Bayonet Lock	Automotive, Communication Systems, Instrumentation	4	Keyed	Varies by Wire Gauge	Panel Mount, Through Hole	Receptacle, Female Sockets	Plastic	Copper Alloy	IP66, IP67, IP68	Thermoplastic	Bulkhead - Front Side Nut	Unshielded	300 VAC	Thermoplastic	UV Resistant	Black
Conxall/Switchcraft W7281-4PG-P-300	Solder	85 °C	-40 °C	Gold	Bayonet Lock	Automotive, Communication Systems, Instrumentation	4	Keyed	Varies by Wire Gauge	Panel Mount, Through Hole	Male Pins, Receptacle	Plastic	Copper Alloy	IP66, IP67, IP68	Thermoplastic	Bulkhead - Front Side Nut	Unshielded	300 VAC	Thermoplastic	UV Resistant	Black
