8-SOIC

MCP6042T-E/SN

Active
Microchip Technology

OP AMP DUAL GP R-R I/O 6V 8-PIN SOIC N T/R

Find alt
8-SOIC

MCP6042T-E/SN

Active
Microchip Technology

OP AMP DUAL GP R-R I/O 6V 8-PIN SOIC N T/R

Find alt

Description

General part information

MCP6042 Series

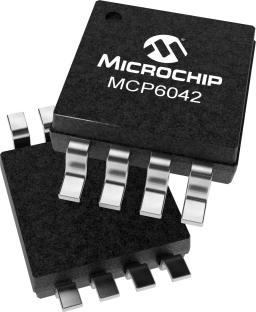

The MCP6042 dual operational amplifier (op amp) has a gain bandwidth product of 14 kHz with a low typical operating current of 600 nA and an offset voltage that is less than 3 mV. The MCP6042 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP6042 operates with a single supply voltage that can be as low as 1.4V, while drawing less than 1.0 uA of quiescent current per amplifier. The MCP6042 is available in standard 8-lead PDIP, SOIC and MSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment and wearable products.

Technical Specifications

Parameters and characteristics for this part

SpecificationMCP6042T-E/SN
Amplifier TypeGeneral Purpose
Current - Input Bias1 pA
Current - Output / Channel20 mA
Current - Supply600 nA
Gain Bandwidth Product14 kHz
Mounting TypeSurface Mount
Number of Circuits2
Operating Temperature (Max)125 °C
Operating Temperature (Min)-40 °C
Output TypeRail-to-Rail
Package Length0.154 in
Package Name8-SOIC
Package Width3.9 mm
Slew Rate3 V/ms
Voltage - Input Offset3 mV
Voltage - Supply Span (Max)6 V
Voltage - Supply Span (Min)1.4 V
