CONN RPSMA JCK STR 50OHM EDGEMNT

0732510680

Active

Molex

CONN RPSMA JCK STR 50OHM EDGEMNT

Description Specifications Series Pricing CAD Documents

Description

General part information

073251 Series

RP-SMA Connector Jack, Male Pin 50 Ohms Board Edge, End Launch Solder

Technical Specifications

Parameters and characteristics for this part

Specification	0732510680

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	RP-SMA
Connector Type	Jack, Male Pin
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	End Launch, Board Edge
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

073251 Series

...

Part	Impedance	Fastening Type	Center Contact Material	Shield Termination	Cable Group	Housing Color	Mounting Type	Frequency - Max	Number of Ports	Connector Style	Contact Termination	Connector Type	Cable Group Diameter (Semi Rigid)	Includes Total Count	Includes	Voltage Rating	Center Contact Plating	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Mating Cycles	Body Finish	Mounting Feature	Ingress Protection Description	Ingress Protection IP Rating
Molex 0732512840	50 Ohm	Threaded	Beryllium Copper	Crimp	RG-316	Gold	Free Hanging (In-Line)	18 GHz	1	SMA	Crimp	Male Pin Plug
Molex 0732510552	50 Ohm	Threaded	Beryllium Copper	Solder	RG-402	Gold	Free Hanging (In-Line) Right Angle	18 GHz	1	SMA	Solder	Male Pin Plug	0.141 in	2 pcs	Connector End Cap	500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Brass	500 cycles	Gold
Molex 0732512120	50 Ohm	Threaded	Beryllium Copper	Solder		Gold	Board Edge End Launch Panel Mount	18 GHz	1	SMA	Solder	Female Socket Jack				500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Brass	500 cycles	Gold	Bulkhead Front Side Nut
Molex 0732510680	50 Ohm	Threaded	Brass	Solder		Gold	Board Edge End Launch	18 GHz	1	RP-SMA	Solder	Jack Male Pin				500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Brass	500 cycles	Gold
Molex 0732516761		Threaded		Solder			Panel Mount Through Hole		1	SMA	Solder	Female Socket Jack												Bulkhead
Molex 0732512430	50 Ohm	Threaded	Brass	Solder	RG-405	Gold	Free Hanging (In-Line)	18 GHz	1	SMA	Solder	Male Pin Plug	0.085 in	2 pcs	Connector Contact	500 V	Gold	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Stainless Steel	500 cycles	Gold
Molex 0732512310	50 Ohm	Threaded	Beryllium Copper	Crimp	188 316 RG-174	Silver	Free Hanging (In-Line)	18 GHz	1	RP-SMA	Solder	Female Socket Plug
Molex 0732512940	50 Ohm	Threaded	Brass	Solder		Gold	Right Angle Through Hole	18 GHz	1	SMA	Solder	Male Pin Plug				500 V	Gold	Polytetrafluoroethylene (PTFE)			Brass		Gold
Molex 0732519691	50 Ohm									SMA		Female Socket Jack													Dust Tight Waterproof	IP67

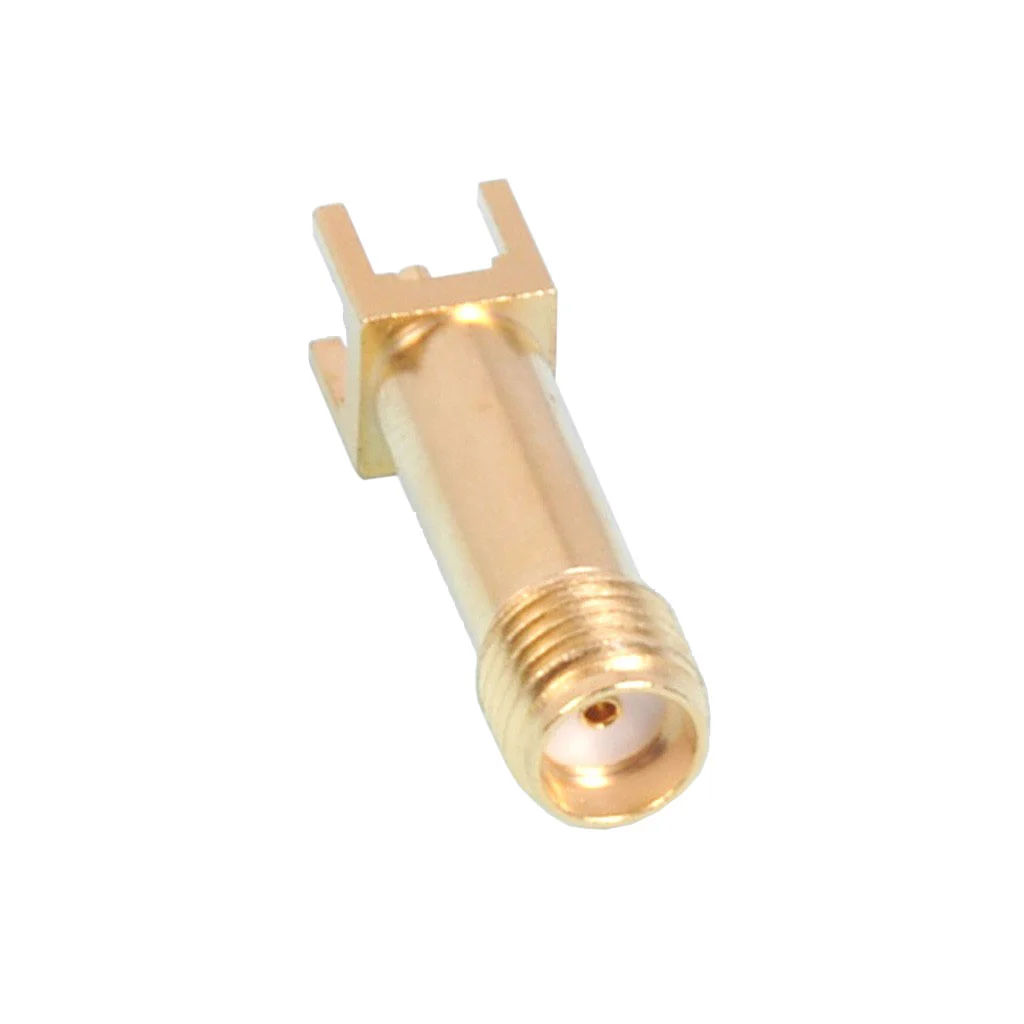

Molex 0732512331	50 Ohm	Threaded	Brass	Solder		Gold	Through Hole	18 GHz	1	SMA	Solder	Female Socket Jack				500 V	Gold	Polytetrafluoroethylene (PTFE)			Brass		Gold
