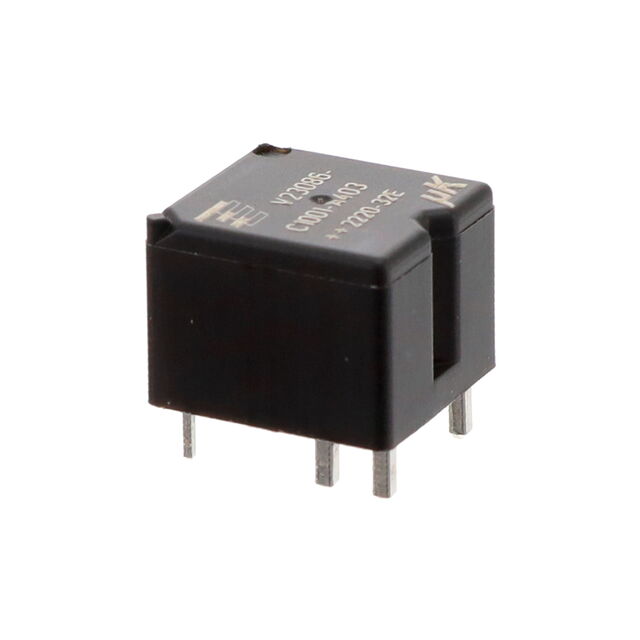

1-1414761-0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY AUTO SPDT 30A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-1414761-0
ActiveTE Connectivity Potter & Brumfield Relays
RELAY AUTO SPDT 30A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-1414761-0 |
|---|---|
| Coil Current | 47.2 mA |
| Coil Power | 567 mW |
| Coil Resistance | 254 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 30 A |
| Mounting Type | Through Hole |
| Must Operate Voltage | 6.9 VDC |
| Must Release Voltage | 1.5 VDC |
| Operate Time | 3 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 1.5 ms |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.03 | |
| 10 | $ 2.84 | |||
| 25 | $ 2.52 | |||
| 50 | $ 2.40 | |||
| 100 | $ 2.27 | |||
| 250 | $ 2.02 | |||
| 500 | $ 1.89 | |||
| 2000 | $ 1.77 | |||
Description
General part information
1414761 Series
RELAY AUTO SPDT 30A 12V
