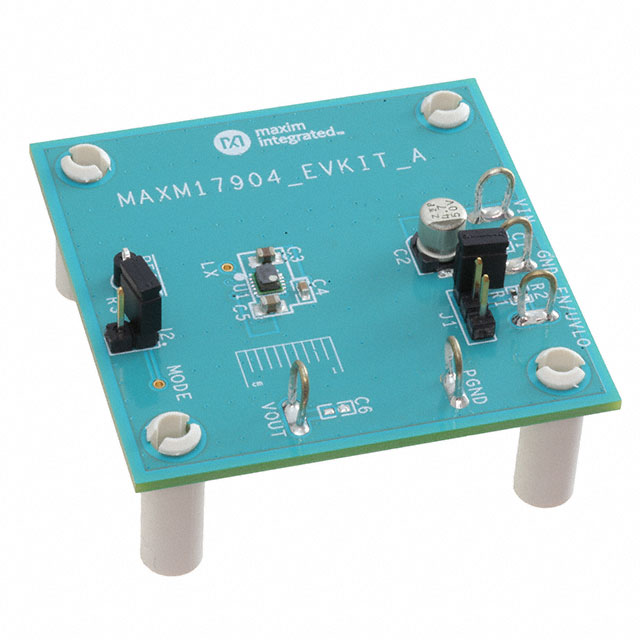

MAXM17904EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BUCK MOD MAXM17904
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17904EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BUCK MOD MAXM17904
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17904EVKIT# | MAXM17904 Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 300 mA | 300 mA |
| Current - Output (Max) | - | 300 mA |
| Features | - | OCP, OTP |
| Frequency - Switching | 550 kHz | 550 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 10-SMD Module |
| Regulator Topology | Buck | Buck |
| Size / Dimension | - | 0.06 " |
| Size / Dimension | - | 1.5 mm |
| Size / Dimension | - | 0.1 in |
| Size / Dimension | - | 0.12 in |
| Size / Dimension | - | 2.6 mm |
| Size / Dimension | - | 3 mm |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-eMGA |
| Supplier Device Package | - | 2.6 |
| Supplier Device Package | - | 3 |
| Type | - | Non-Isolated PoL Module |
| Utilized IC / Part | MAXM17904 | MAXM17904 |
| Voltage - Input (Max) | - | 24 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 24 V | 24 V |
| Voltage - Input [Min] | 5.5 V | 5.5 V |
| Voltage - Output | 3.3 V | 3.3 V |
| Voltage - Output 1 | - | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 32.12 | |
MAXM17904 Series
DC DC CONVERTER 3.3V
| Part | Number of Outputs | Voltage - Input (Max) [Max] | Package / Case | Current - Output (Max) [Max] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Output 1 | Features | Type | Mounting Type | Applications | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Voltage - Input (Min) [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Frequency - Switching | Current - Output | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Voltage - Output | Outputs and Type | Outputs and Type | Main Purpose | Regulator Topology | Board Type | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17904AMB+T | 1 | 24 V | 10-SMD Module | 300 mA | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 3.3 V | OCP, OTP | Non-Isolated PoL Module | Surface Mount | ITE (Commercial) | 10-eMGA | 2.6 | 3 | 4.5 V | 125 °C | -40 °C | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17904EVKIT# | 550 kHz | 300 mA | 24 V | 5.5 V | MAXM17904 | 3.3 V | Non-Isolated | 1 | DC/DC, Step Down | Buck | Fully Populated | Board(s) | |||||||||||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17904AMB+ | 1 | 24 V | 10-SMD Module | 300 mA | 0.06 " | 1.5 mm | 0.1 in | 0.12 in | 2.6 mm | 3 mm | 3.3 V | OCP, OTP | Non-Isolated PoL Module | Surface Mount | ITE (Commercial) | 10-eMGA | 2.6 | 3 | 4.5 V | 125 °C | -40 °C |
Description
General part information
MAXM17904 Series
MAXM17904 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
