AR 06-HZL/01-TT
ActiveAssmann WSW Components

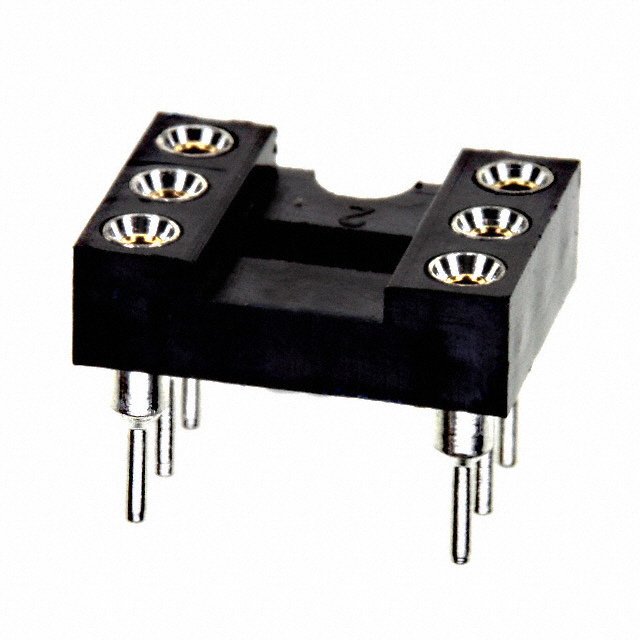

CONN IC DIP SOCKET 6POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AR 06-HZL/01-TT
ActiveAssmann WSW Components
CONN IC DIP SOCKET 6POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AR 06-HZL/01-TT |
|---|---|
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Finish Thickness - Post | 200 µin |
| Contact Finish Thickness - Post | 5.08 µm |
| Contact Material - Mating | Beryllium Copper |
| Contact Material - Post | Beryllium Copper |
| Contact Resistance | 4 mOhm |
| Current Rating (Amps) | 3 A |
| Features | Open Frame |
| Housing Material | Thermoplastic, Polyester |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions or Pins (Grid) [custom] | 2 |
| Number of Positions or Pins (Grid) [custom] | 6 |
| Number of Positions or Pins (Grid) [custom] | 3 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Type | 0.3 " |
| Type | 7.62 mm |
| Type | DIP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 0.47 | |
| 10 | $ 0.40 | |||
| 25 | $ 0.35 | |||
| 80 | $ 0.31 | |||
| 320 | $ 0.28 | |||
| 560 | $ 0.27 | |||
| 1040 | $ 0.22 | |||
| 2560 | $ 0.20 | |||
Description
General part information
AR 06-HZL Series
6 (2 x 3) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
