BM05B-ADHKS-GAN-ETB(HF) - BM05B-ADHKS-GAN-ETB(HF)(LF)(SN)

BM05B-ADHKS-GAN-ETB(HF)

Active
JST Sales America Inc.

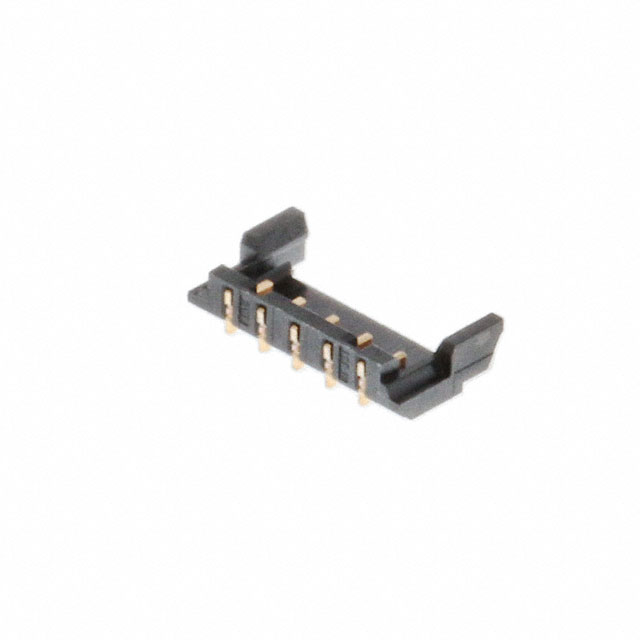

CONN HEADER SMD R/A 5POS 1.3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsJST Prefix Suffix ChartJST Prefix Suffix Chart+1
BM05B-ADHKS-GAN-ETB(HF) - BM05B-ADHKS-GAN-ETB(HF)(LF)(SN)

BM05B-ADHKS-GAN-ETB(HF)

Active
JST Sales America Inc.

CONN HEADER SMD R/A 5POS 1.3MM

Deep-Dive with AI

DocumentsJST Prefix Suffix ChartJST Prefix Suffix Chart+1

Technical Specifications

Parameters and characteristics for this part

SpecificationBM05B-ADHKS-GAN-ETB(HF)
Connector TypeHeader
Contact Finish - PostTin
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeMale Blade
Current Rating (Amps)3 A
Fastening TypeDetent Lock
FeaturesSolder Retention
Insulation ColorWhite
Insulation Height0.069 in
Insulation Height1.75 mm
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount, Right Angle
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Pitch - Mating0.051 in
Pitch - Mating1.3 mm
ShroudingShrouded - 3 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating30 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.54
10$ 0.46
100$ 0.39
500$ 0.35
1000$ 0.33
Digi-Reel® 1$ 0.54
10$ 0.46
100$ 0.39
500$ 0.35
1000$ 0.33
Tape & Reel (TR) 5000$ 0.31
10000$ 0.30
15000$ 0.29
25000$ 0.28
35000$ 0.27

Description

General part information

BM05B-AD Series

Connector Header Surface Mount, Right Angle 5 position 0.051" (1.30mm)
