R191300800

Active

Radiall USA, Inc.

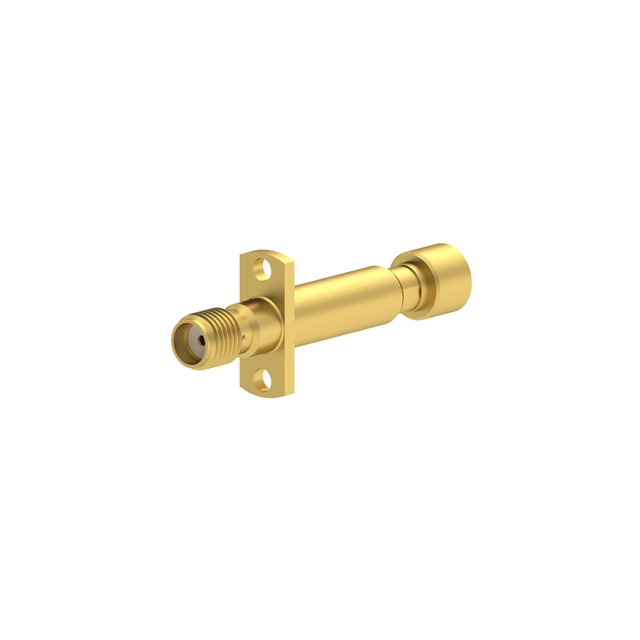

SMA FEMALE FLANGE TEST PROBE FOR

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA FEMALE FLANGE TEST PROBE FOR

Technical Specifications

Parameters and characteristics for this part

Specification	R191300800

Body Finish	Gold
Body Material	Brass
Center Contact Finish	Gold
Center Contact Material	Brass, Beryllium Copper
Color	Gold
Connector Style	SMA
For Use With/Related Products	SMA Jacks

Part	Style	Adapter Series	Convert To (Adapter End)	Impedance	Mating Cycles	Fastening Type	Body Material	Center Contact Plating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Adapter Type	Conversion Type	Body Finish	Frequency - Max [Max]	Convert From (Adapter End)	Center Contact Material	Connector Style	Center Contact Finish	Color	For Use With/Related Products
Radiall USA, Inc. R191305000	Straight	BNC to SMA	Female Socket SMA Jack	50 Ohms	500	Bayonet Lock Threaded	Brass	Gold	Free Hanging (In-Line)	-65 ░C	165 °C	Polytetrafluoroethylene (PTFE)	Plug to Jack	Between Series	Nickel	4 GHz	BNC Plug Male Pin	Beryllium Copper
Radiall USA, Inc. R191300800							Brass								Gold			Beryllium Copper Brass	SMA	Gold	Gold	SMA Jacks

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 472.11

General part information

Connector Measurement Probe For SMA Jacks

Technical documentation and resources

No documents available
