9-1419166-0
ActiveTE Connectivity AMP Connectors

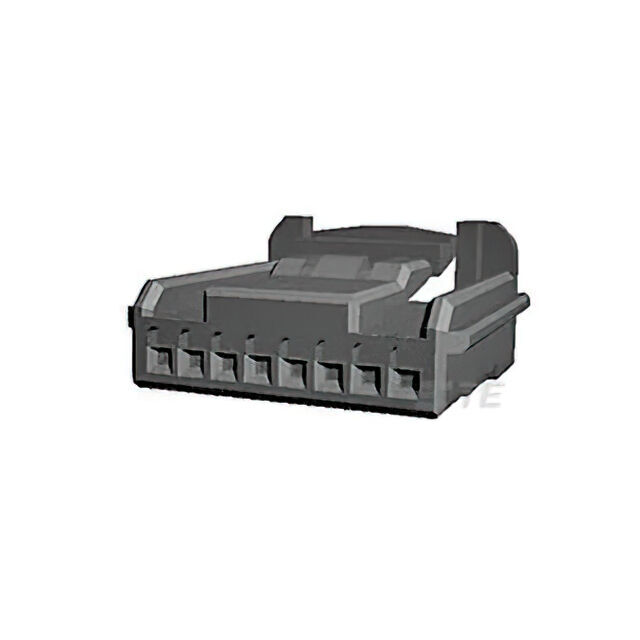

GET;1X8 MALE CONNECTOR ASSY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9-1419166-0
ActiveTE Connectivity AMP Connectors
GET;1X8 MALE CONNECTOR ASSY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 9-1419166-0 | 1419166 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Plug | Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Tab | Tab |
| Fastening Type | Latch Lock | Latch Lock |
| Features | Terminal Position Lock (TPA) | Terminal Position Lock (TPA) |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 8 | 4 - 8 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Pitch [x] | 0.1 in | 0.1 in |
1419166 Series
GET;1X8 MALE CONNECTOR ASSY
| Part | Connector Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows | Contact Type | Contact Termination | Pitch [x] | Pitch [x] | Mounting Type | Number of Positions | Insulation Material | Features | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 9-1419166-0 | Plug | Latch Lock | 100 °C | -40 °C | 1 | Tab | Crimp | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 8 | Polyamide (PA66), Nylon 6/6, Glass Filled | Terminal Position Lock (TPA) | Black |
TE Connectivity AMP Connectors 6-1419166-1 | Plug | 100 °C | -40 °C | 1 | Tab | Crimp | 2.54 mm | 0.1 in | Free Hanging (In-Line) | 4 | Polyamide (PA66), Nylon 6/6, Glass Filled | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.68 | |
| 10 | $ 2.28 | |||
| 25 | $ 2.14 | |||
| 50 | $ 2.03 | |||
| 100 | $ 1.94 | |||
| 250 | $ 1.82 | |||
| 500 | $ 1.73 | |||
| 1000 | $ 1.65 | |||
| 2500 | $ 1.54 | |||
Description
General part information
1419166 Series
8 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
