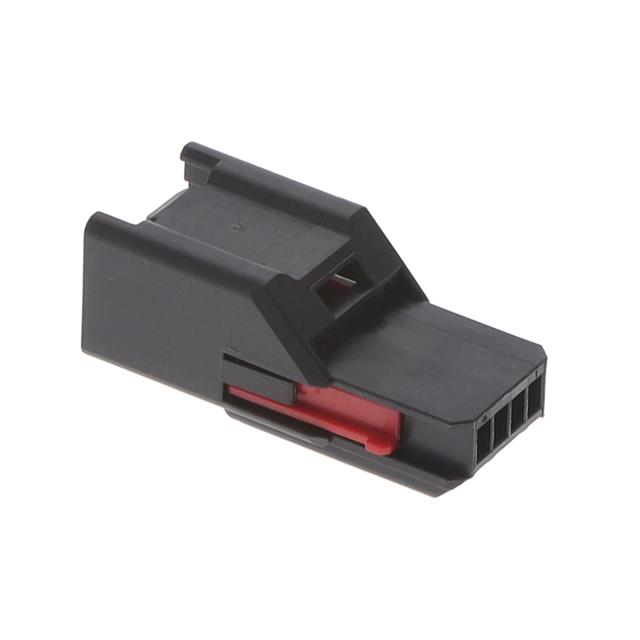

6-1419166-1

Active

TE Connectivity AMP Connectors

1X4MALE IL ASSY "A"

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

1X4MALE IL ASSY "A"

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6-1419166-1	1419166 Series

Color	Black	Black
Connector Type	Plug	Plug
Contact Termination	Crimp	Crimp
Contact Type	Tab	Tab
Fastening Type	-	Latch Lock
Features	-	Terminal Position Lock (TPA)
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4 - 8
Number of Rows	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	2.54 mm	2.54 mm
Pitch [x]	0.1 in	0.1 in

GET;1X8 MALE CONNECTOR ASSY

Part	Connector Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Type	Contact Termination	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Insulation Material	Features	Color
TE Connectivity AMP Connectors 9-1419166-0	Plug	Latch Lock	100 °C	-40 °C	1	Tab	Crimp	2.54 mm	0.1 in	Free Hanging (In-Line)	8	Polyamide (PA66), Nylon 6/6, Glass Filled	Terminal Position Lock (TPA)	Black
TE Connectivity AMP Connectors 6-1419166-1	Plug		100 °C	-40 °C	1	Tab	Crimp	2.54 mm	0.1 in	Free Hanging (In-Line)	4	Polyamide (PA66), Nylon 6/6, Glass Filled		Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Plug Black 0.100" (2.54mm)
