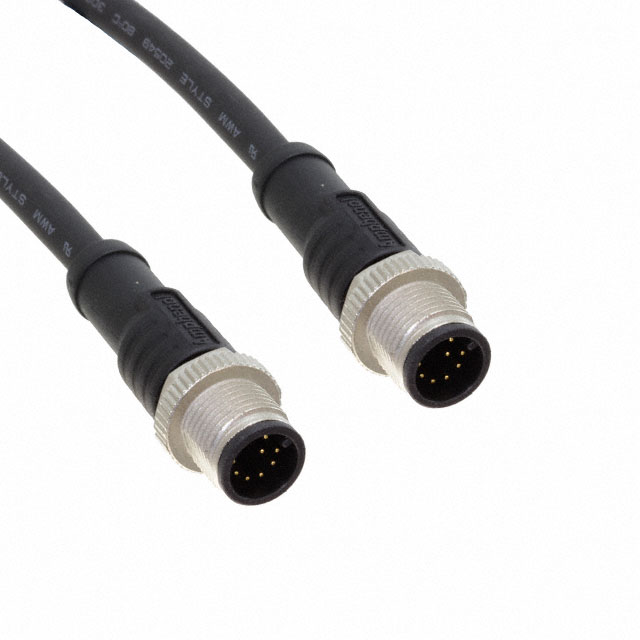

M12A10ML-12AML-SD001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M12A10ML-12AML-SD001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 10 PINS, MALE CONNECTOR, MALE CONTACT, STRAIGHT-TO-STRAIGHT, SCREW THREAD,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M12A10ML-12AML-SD001

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	10
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions [custom]	10
2nd Connector Number of Positions Loaded	All
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68, IP69K
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

M12A10ML Series

Part	1st Connector Number of Positions	1st Connector Type	2nd Connector Type	1st Connector Orientation	2nd Connector Shell Size - Insert	Shielding	Usage	1st Connector Number of Positions Loaded	2nd Connector Number of Positions Loaded	1st Connector Mounting Type	1st Connector Gender	Cable Type	2nd Connector Mounting Type	2nd Connector Gender	1st Connector Shell Size - Insert	Length [x]	Length [x]	Color	Cable Material	Assembly Configuration	2nd Connector Number of Positions [custom]	Ingress Protection
Amphenol LTW M12A10ML-12AFL-SD001	10	Receptacle	Plug	A	M12	Unshielded	Industrial Environments	All	All	Free Hanging (In-Line)	Male Pins	Round	Free Hanging (In-Line)	Female Sockets	M12	1 m	3.28 ft	Black	Polyvinyl Chloride (PVC)	Standard	10	IP68 IP69K
Amphenol LTW M12A10ML-12AML-SD001	10	Receptacle	Receptacle	A	M12	Unshielded	Industrial Environments	All	All	Free Hanging (In-Line)	Male Pins	Round	Free Hanging (In-Line)		M12	1 m	3.28 ft	Black	Polyvinyl Chloride (PVC)	Standard	10	IP68 IP69K
Amphenol LTW M12A10ML-12AML-SDA05	10	Receptacle	Receptacle	A	M12	Unshielded	Industrial Environments	All	All	Free Hanging (In-Line)	Male Pins	Round	Free Hanging (In-Line)		M12	500 mm	1.64 ft	Black	Polyvinyl Chloride (PVC)	Standard	10	IP68 IP69K
Amphenol LTW M12A10ML-12AML-SBA05	10	Receptacle	Receptacle	A	M12	Unshielded	Industrial Environments	All	All	Free Hanging (In-Line)	Male Pins	Round	Free Hanging (In-Line)		M12	500 mm	1.64 ft	Black	Polyurethane (PUR)	Standard	10	IP68 IP69K
Amphenol LTW M12A10ML-12AMR-SBA05	10	Receptacle Right Angle	Receptacle	A	M12	Unshielded	Industrial Environments	All	All	Free Hanging (In-Line)	Male Pins	Round	Free Hanging (In-Line)		M12	500 mm	1.64 ft	Black	Polyurethane (PUR)	Standard	10	IP68 IP69K
Amphenol LTW M12A10ML-12AML-SB002	10	Receptacle	Receptacle	A	M12	Unshielded	Industrial Environments	All	All	Free Hanging (In-Line)	Male Pins	Round	Free Hanging (In-Line)		M12	2 m	6.56 ft	Black	Polyurethane (PUR)	Standard	10	IP68 IP69K
Amphenol LTW M12A10ML-12AFL-SD002	10	Receptacle	Plug	A	M12	Unshielded	Industrial Environments	All	All	Free Hanging (In-Line)	Male Pins	Round	Free Hanging (In-Line)	Female Sockets	M12	2 m	6.56 ft	Black	Polyvinyl Chloride (PVC)	Standard	10	IP68 IP69K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 14.33
		10	$ 12.42
		25	$ 12.01
Newark	Each	10	$ 17.94
		25	$ 16.70
		50	$ 15.35
		100	$ 15.12
		250	$ 14.90

Description

General part information

M12A10ML Series

Circular Cable Assembly Unshielded 3.28' (1.00m)
