EO0201000000G
ActiveAMPHENOL ANYTEK

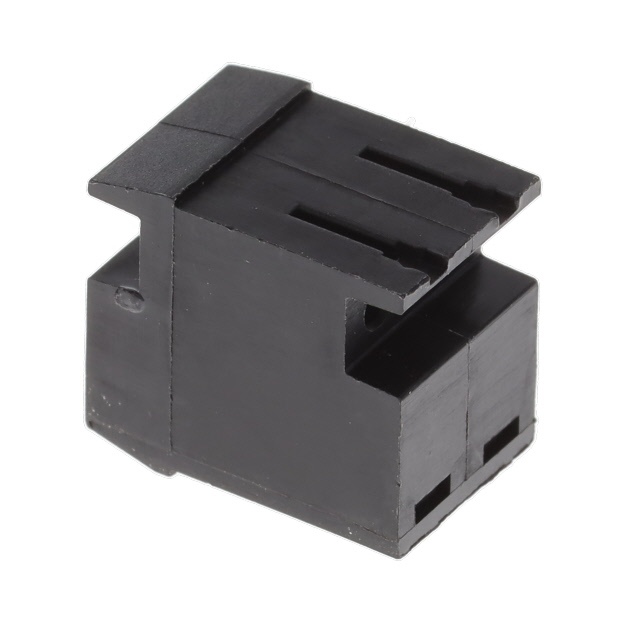

TERM BLOCK PLUG 2POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EO0201000000G
ActiveAMPHENOL ANYTEK
TERM BLOCK PLUG 2POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EO0201000000G | EO Series |
|---|---|---|
| Color | Black | Black |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Mating Finish | Tin | Tin |
| Housing Material | Thermoplastic | Thermoplastic |
| Insulation Height | - | 15.9 mm |
| Insulation Height | - | 0.626 in |
| Insulation Height [z] | 0.587 in | 0.587 in |
| Insulation Height [z] | 14.91 mm | 14.91 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 2 | 2 - 23 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Plug Wire Entry | 90 ° | 90 ° |
| Positions Per Level | 2 | 2 - 23 |
| Screw Size | M3 | M3 |
| Termination Style | Screw | Screw |
| Torque - Screw | 0.51 Nm | 0.51 Nm |
| Torque - Screw | 4.5 Lb-In | 4.5 Lb-In |
| Type | Plug for Unshrouded Header | Plug for Unshrouded Header |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Strip Length [Max] | 6 mm | 6 mm |
| Wire Strip Length [Min] | 5 mm | 5 mm |
EO Series
TERM BLOCK PLUG 3POS 90DEG 5MM
| Part | Pitch [x] | Pitch [x] | Termination Style | Screw Size | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - UL | Contact Material | Insulation Height | Insulation Height | Positions Per Level | Color | Plug Wire Entry | Material Flammability Rating | Wire Strip Length [Min] | Wire Strip Length [Max] | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Torque - Screw | Torque - Screw | Mounting Type | Housing Material | Contact Mating Finish | Number of Levels | Number of Positions | Insulation Height [z] | Insulation Height [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL ANYTEK EO030102A000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 15.9 mm | 0.626 in | 3 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | ||||
AMPHENOL ANYTEK EO1101000000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 11 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 11 | 0.587 in | 14.91 mm | |||
AMPHENOL ANYTEK EO100102A000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 15.9 mm | 0.626 in | 10 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 10 | |||
AMPHENOL ANYTEK EO040102A000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 15.9 mm | 0.626 in | 4 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 4 | |||
AMPHENOL ANYTEK EO0301020000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 3 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 0.587 in | 14.91 mm | ||||
AMPHENOL ANYTEK EO1001000000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 10 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 10 | 0.587 in | 14.91 mm | |||
AMPHENOL ANYTEK EO220102A000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 15.9 mm | 0.626 in | 22 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 22 positions | |||
AMPHENOL ANYTEK EO0301000000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 3 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 0.587 in | 14.91 mm | ||||
AMPHENOL ANYTEK EO080102A000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 15.9 mm | 0.626 in | 8 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 8 | |||
AMPHENOL ANYTEK EO0501000000G | 5 mm | 0.197 in | Screw | M3 | Plug for Unshrouded Header | -40 °C | 115 °C | 300 V | Phosphor Bronze | 5 | Black | 90 ° | UL94 V-0 | 5 mm | 6 mm | 28 AWG | 12 AWG | 0.51 Nm | 4.5 Lb-In | Free Hanging (In-Line) | Thermoplastic | Tin | 1 | 0.587 in | 14.91 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.08 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.62 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.50 | |||
| 500 | $ 0.46 | |||
| 1800 | $ 0.41 | |||
| 5400 | $ 0.38 | |||
Description
General part information
EO Series
2 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
