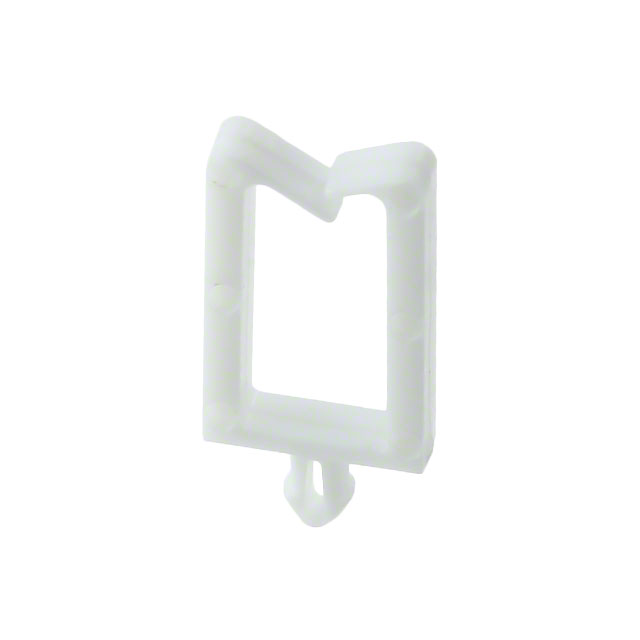

WS-2-19

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.4 MM, 5.6 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.4 MM, 5.6 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WS-2-19

Color	Natural
Features	Flame Retardant
Height [z]	0.71 in
Height [z]	18.03 mm
Length [x]	15.5 mm
Length [x]	0.61 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Push In, Winged
Opening Size [x]	0.438 in
Opening Size [x]	11.13 mm
Opening Size [y]	9.65 mm
Opening Size [y]	0.38 in
Panel Hole Size	4.75 mm
Panel Hole Size	0.187 in
Panel Thickness	0.063 in
Panel Thickness	1.6 mm
Type	Clip, Wire Saddle
Width	5.56 mm
Width [x]	0.219 in

Part	Length [x]	Length [x]	Panel Thickness	Panel Thickness	Height [z]	Height [z]	Color	Type	Features	Panel Hole Size	Panel Hole Size	Material Flammability Rating	Material	Width [x]	Width	Opening Size [x]	Opening Size [y]	Opening Size [y]	Opening Size [x]	Mounting Type
Essentra Access Solutions WS-2-19	15.5 mm	0.61 in	0.063 in	1.6 mm	0.71 in	18.03 mm	Natural	Clip Wire Saddle	Flame Retardant	4.75 mm	0.187 in	UL94 V-0	Polyamide (PA66) Nylon 6/6	0.219 in	5.56 mm	0.438 in	9.65 mm	0.38 in	11.13 mm	Push In Winged
Essentra Access Solutions WS-2-01	15.5 mm	0.61 in	0.063 in	1.6 mm	0.71 in	18.03 mm	Natural	Clip Wire Saddle		4.75 mm	0.187 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	0.219 in	5.56 mm	0.438 in	9.65 mm	0.38 in	11.13 mm	Push In Winged

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Push In, Winged 0.438" L x 0.380" H (11.13mm x 9.65mm)
