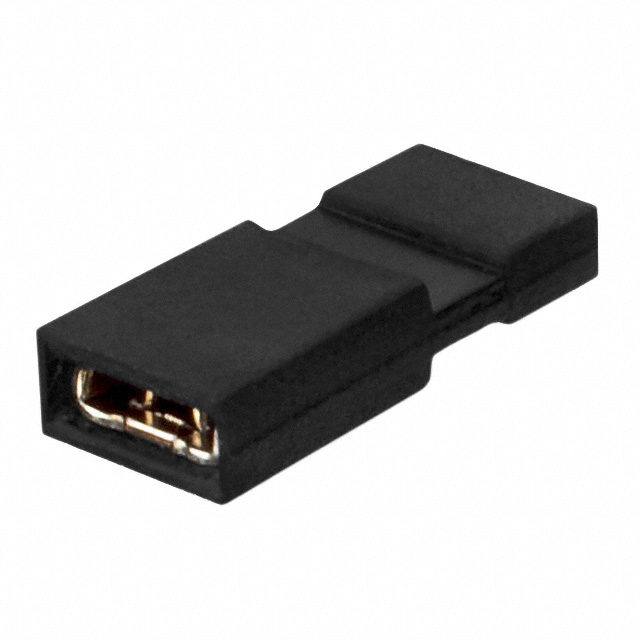

M50-2000005

Active

Harwin Inc.

JUMPER (BUSBAR), JUMPER SOCKET, PIN HEADERS, 2, 1.27 MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

JUMPER (BUSBAR), JUMPER SOCKET, PIN HEADERS, 2, 1.27 MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M50-2000005

Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.025 µm
Contact Finish Thickness	1 µin
Gender	Female Sockets
Height [z]	0.217 "
Height [z]	5.5 mm
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Number of Positions or Pins (Grid) [custom]	1 x 2
Number of Positions or Pins (Grid) [custom]	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Type	Closed Top, Grip

Part	Type	Gender	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Color	Contact Finish	Height [z]	Height [z]	Pitch [x]	Pitch [x]	Housing Material	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness
Harwin Inc. M50-2000005	Closed Top Grip	Female Sockets	1 x 2	2	Black	Gold	0.217 "	5.5 mm	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	UL94 V-0	0.025 µm	1 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 x 2) Position Shunt Connector Black Closed Top, Grip 0.050" (1.27mm) Gold
