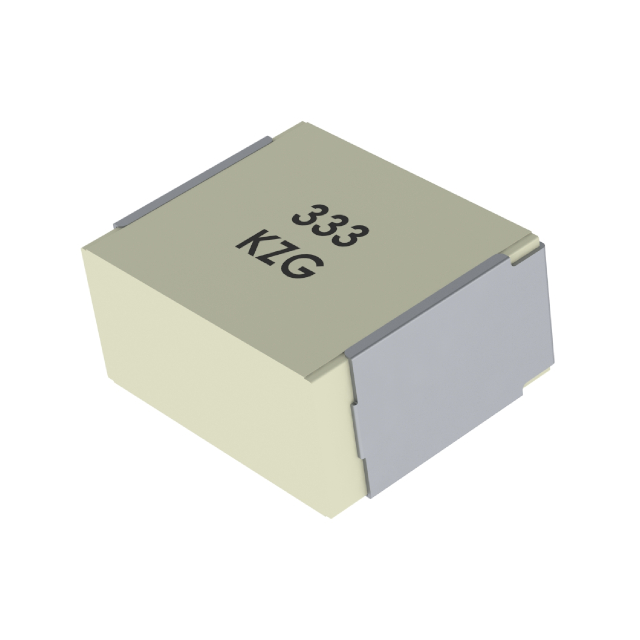

LDEDD4100JA0N00 - LDEDD3470KA5N00

LDEDD4100JA0N00

KEMET

CAP FILM 1UF 5% 63VDC 2220

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetKEM_F3078_LDE.pdf+1
LDEDD4100JA0N00 - LDEDD3470KA5N00

LDEDD4100JA0N00

KEMET

CAP FILM 1UF 5% 63VDC 2220

Deep-Dive with AI

DocumentsDatasheetKEM_F3078_LDE.pdf+1

Technical Specifications

Parameters and characteristics for this part

SpecificationLDEDD4100JA0N00
ApplicationsAutomotive
Capacitance1 µF
Dielectric MaterialPolyethylene Naphthalate (PEN), Metallized - Stacked, Polyester
FeaturesHigh Temperature
Height - Seated (Max) [Max] [z]4.4 mm
Height - Seated (Max) [Max] [z]0.173 in
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / Case5750 Metric
Package / Case2220
RatingsAEC-Q200
Size / Dimension [x]0.236 in
Size / Dimension [x]6 mm
Size / Dimension [y]5 mm
Size / Dimension [y]0.197 "
TerminationSolder Pads
Tolerance5 %
Voltage Rating - AC40 V
Voltage Rating - DC63 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 3.48
10$ 2.45
50$ 2.04
100$ 1.91
500$ 1.70
Digi-Reel® 1$ 3.48
10$ 2.45
50$ 2.04
100$ 1.91
500$ 1.70
Tape & Reel (TR) 1750$ 1.59
3500$ 1.54
5250$ 1.52
NewarkEach (Supplied on Full Reel) 1000$ 1.80
2000$ 1.70
4000$ 1.54
6000$ 1.48
10000$ 1.43

Description

General part information

LDEDD Series

1 µF Film Capacitor 40V 63V Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked 2220 (5750 Metric)
