50M020040 Series

Part	Screw Head Type	Thread Pitch	Thread Diameter	Type	Head Diameter	Length - Below Head	Material	Drive Type	Length - Overall	Head Height
Essentra Components 50M020040J012	Hex Head	0.4 mm	2 mm	Bolt	0.126 in	0.472 in	Nylon	Hex Socket	0.535 in
Essentra Components 50M020040J020	Hex Head	0.4 mm	2 mm	Bolt	0.126 in	0.787 in	Nylon	Hex Socket	0.85 in
Essentra Components 50M020040J008	Hex Head	0.4 mm	2 mm	Bolt	0.126 in	0.315 in	Nylon	Hex Socket	0.378 in
Essentra Components 50M020040G008	Pan Head	0.4 mm	2 mm	Machine Screw	0.15 in	0.315 in	Nylon	Phillips	0.378 in	0.063 in

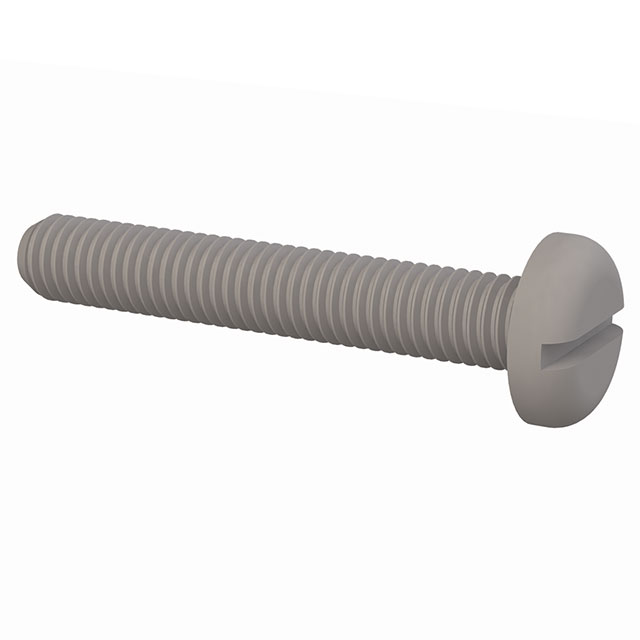

Essentra Components 50M020040D010	Cheese Head	0.4 mm	2 mm	Bolt	0.15 in	0.394 in	Nylon	Slotted	0.445 in	0.051 in
Essentra Components 50M020040J010	Hex Head	0.4 mm	2 mm	Bolt	0.126 in	0.394 in	Nylon	Hex Socket	0.457 in
Essentra Components 50M020040G010	Pan Head	0.4 mm	2 mm	Machine Screw	0.15 in	0.394 in	Nylon	Phillips	0.457 in	0.063 in
Essentra Components 50M020040D025	Cheese Head	0.4 mm	2 mm	Bolt	0.15 in	0.984 in	Nylon	Slotted	1.035 in	0.051 in
Essentra Components 50M020040P006	Pan Head	0.4 mm	2 mm	Machine Screw	0.157 in	0.236 in	Nylon	Phillips	0.299 in
Essentra Components 50M020040H012	Flat Head	0.4 mm	2 mm	Machine Screw	0.173 in	0.425 in	Nylon	Slotted	0.472 in	0.047 in
