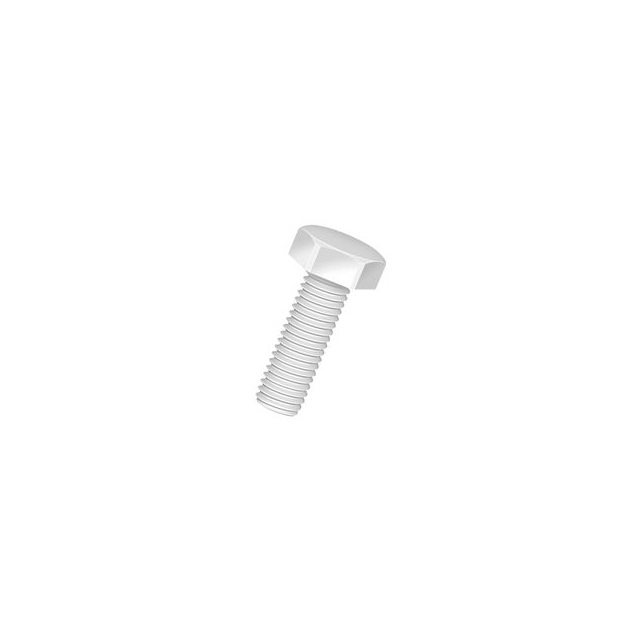

50M020040J020

Active

Essentra Access Solutions

HEX UNSLOTTED BOLT, M2 X .4 THRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	50M020040J020

Drive Type	Hex Socket
Head Diameter	3.2 mm
Head Diameter	0.126 in
Head Diameter	0.125 in
Length - Below Head	0.787 in
Length - Below Head	20 mm
Length - Overall [x]	21.6 mm
Length - Overall [x]	0.85 "
Material	Nylon
Screw Head Type	Hex Head
Thread Size	M2x0.4
Type	Bolt

50M020040 Series

Part	Length - Overall [x]	Length - Overall [x]	Screw Head Type	Material	Drive Type	Length - Below Head [x]	Length - Below Head [x]	Head Diameter	Head Diameter	Head Diameter	Thread Size	Type	Length - Below Head	Length - Below Head	Head Diameter [diameter]	Head Diameter [diameter]	Length - Overall	Length - Overall	Length - Below Head [custom]	Length - Below Head [custom]	Head Height [z]	Head Height [z]	Head Height	Head Height
Essentra Access Solutions 50M020040J012	0.535 in	13.6 mm	Hex Head	Nylon	Hex Socket	0.472 in	12 mm	3.2 mm	0.126 in	0.125 in	M2x0.4	Bolt
Essentra Access Solutions 50M020040J020	0.85 "	21.6 mm	Hex Head	Nylon	Hex Socket			3.2 mm	0.126 in	0.125 in	M2x0.4	Bolt	0.787 in	20 mm
Essentra Access Solutions 50M020040G008			Pan Head	Nylon	Phillips						M2x0.4	Machine Screw			3.8 mm	0.15 in	9.6 mm	0.378 in	8 mm	0.315 in	0.063 in	1.6 mm
Essentra Access Solutions 50M020040D010	0.445 in	11.3 mm	Cheese Head	Nylon	Slotted	0.394 in	10 mm				M2x0.4	Bolt			3.8 mm	0.15 in							0.051 in	1.3 mm
Essentra Access Solutions 50M020040J010	0.457 in	11.6 mm	Hex Head	Nylon	Hex Socket	0.394 in	10 mm	3.2 mm	0.126 in	0.125 in	M2x0.4	Bolt
Essentra Access Solutions 50M020040G010	0.457 in	11.6 mm	Pan Head	Nylon	Phillips	0.394 in	10 mm				M2x0.4	Machine Screw			3.8 mm	0.15 in					0.063 in	1.6 mm
Essentra Access Solutions 50M020040D025	1.035 in	26.3 mm	Cheese Head	Nylon	Slotted	0.984 "	25 mm				M2x0.4	Bolt			3.8 mm	0.15 in							0.051 in	1.3 mm
Essentra Access Solutions 50M020040P006			Pan Head	Nylon	Phillips						M2x0.4	Machine Screw	0.236 in	6 mm	4 mm	0.157 in
Essentra Access Solutions 50M020040H012	0.472 in	12 mm	Flat Head	Nylon	Slotted						M2x0.4	Machine Screw	0.425 in	10.8 mm	4.4 mm	0.173 in					0.047 in	1.2 mm
Essentra Access Solutions 50M020040F008			Pan Head	Nylon	Slotted						M2x0.4	Machine Screw			3.8 mm	0.15 in	9.6 mm	0.378 in	8 mm	0.315 in	0.063 in	1.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.10
		5	$ 0.08
		10	$ 0.07
		25	$ 0.06
		50	$ 0.05
		100	$ 0.05
		250	$ 0.04
		500	$ 0.04
		1000	$ 0.04

Description

General part information

50M020040 Series

M2x0.4 Hex Head Bolt Hex Socket Drive Nylon
