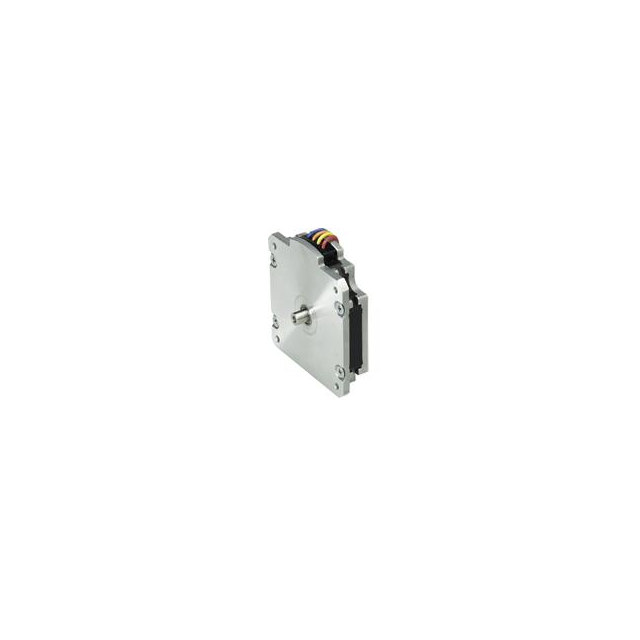

SS2502-8040

Active

Sanyo

STEP, F2, SQ.50, 1.8, PANCAKE TY

Search across all available documentation for this part.

Active

Sanyo

STEP, F2, SQ.50, 1.8, PANCAKE TY

Technical Specifications

Parameters and characteristics for this part

Specification	SS2502-8040

Approval Agency	cURus, CE, TUV
Coil Resistance	5.9 Ohms
Coil Type	Bipolar
Current Rating (Amps)	1 A
Diameter - Shaft [diameter]	0.197 in
Diameter - Shaft [diameter]	5 mm
Length - Shaft and Bearing	5 mm
Length - Shaft and Bearing [x]	0.197 in
Mounting Hole Spacing	1.614 in
Mounting Hole Spacing	41 mm
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Rotor Inertia	1.18 gcm²
Size / Dimension [x]	50 mm
Size / Dimension [x]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [y]	1.969 in
Step Angle	1.8 °
Steps per Revolution	200
Termination Style	Wire Leads
Torque - Holding (oz-in / mNm)	215 mNm
Torque - Holding (oz-in / mNm)	30.45 oz-in
Type	Hybrid
Voltage - Rated	24 VDC

STEP, F2, SQ.50, 1.8, PANCAKE TY

Part	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Steps per Revolution	Type	Mounting Hole Spacing	Mounting Hole Spacing	Step Angle	Coil Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Current Rating (Amps)	Coil Resistance	Voltage - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Rotor Inertia
Sanyo SS2502-8040	-10 °C	50 °C	200	Hybrid	1.614 in	41 mm	1.8 °	Bipolar	0.197 in	5 mm	CE, cURus, TUV	50 mm	50 mm	1.969 in	1.969 in	Wire Leads	215 mNm	30.45 oz-in	1 A	5.9 Ohms	24 VDC	0.197 in	5 mm	1.18 gcm²

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Hybrid Frame Size 200.0 Step 1 A 24VDC
