ERDP-049 Series

Part	Color	Pitch - Connector	Pitch - Cable	Number of Positions	Connector Type	Contact Finish Thickness	Number of Rows	Length	Shielding	Cable Termination	Contact Finish
Samtec Inc. ERDP-049-06.00-TBR-TBL-7-D	Blue Ribbon	0.031 in	0.016 in	98	Plug to Plug	50 µin	2	0.5 ft	Unshielded	IDC	Gold
Samtec Inc. ERDP-049-12.00-TBR-TTL-5-D	Blue Ribbon	0.031 in	0.016 in	98	Plug to Plug	50 µin	2	12 in	Unshielded	IDC	Gold
Samtec Inc. ERDP-049-12.00-TBR-TBL-7-D	Blue Ribbon	0.031 in	0.016 in	98	Plug to Plug	50 µin	2	12 in	Unshielded	IDC	Gold
Samtec Inc. ERDP-049-06.00-TBR-TTL-5-D	Blue Ribbon	0.031 in	0.016 in	98	Plug to Plug	50 µin	2	0.5 ft	Unshielded	IDC	Gold
Samtec Inc. ERDP-049-40.00-TBR-TTL-5-D	Blue Ribbon	0.031 in	0.016 in	98	Plug to Plug	50 µin	2	3.33 ft	Unshielded	IDC	Gold

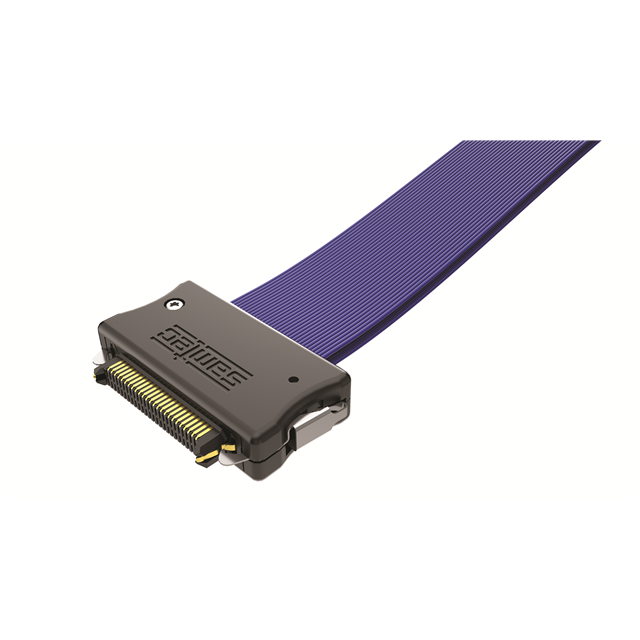

Samtec Inc. ERDP-049-40.00-TBR-TBL-7-D	Blue Ribbon	0.031 in	0.016 in	98	Plug to Plug	50 µin	2	3.33 ft	Unshielded	IDC	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
