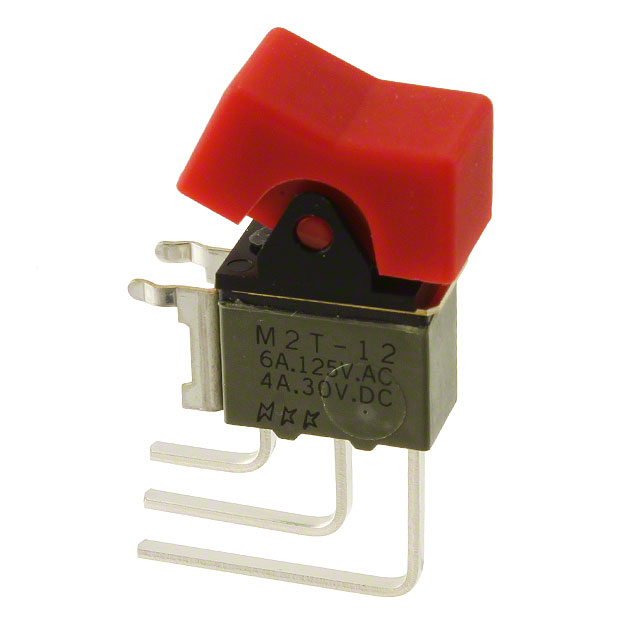

M2T12TXW41-DC

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Search across all available documentation for this part.

Obsolete

NKK Switches

SWITCH ROCKER SPDT 6A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	M2T12TXW41-DC

Actuator Marking	No Marking
Actuator Type	Concave (Standard V)
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	4 A, 6 A
Electrical Life	25000 Steps
Features	Process Sealed
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Actuator Marking	Electrical Life	Features	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Current Rating (Amps)	Color - Actuator/Cap	Termination Style	Switch Function	Circuit	Voltage Rating - DC	Actuator Type	Mounting Type
NKK Switches M2T12TXG30-DA	No Marking	50000 Cycles	Process Sealed	28 V	-30 ░C	85 °C	CSA UL	0.4 VA	Black	PC Pin	On-On	SPDT	28 V	Concave (Standard V)	Through Hole Right Angle
NKK Switches M2T12TXW30-DA	No Marking	25000 Steps	Process Sealed	125 V	-30 ░C	85 °C	CSA UL	4 A 6 A	Black	PC Pin	On-On	SPDT	30 V	Concave (Standard V)	Through Hole Right Angle
NKK Switches M2T12TXG13-DB	No Marking	50000 Cycles	Process Sealed	28 V	-30 ░C	85 °C	CSA UL	0.4 VA	White	PC Pin	On-On	SPDT	28 V	Concave (Standard V)	Through Hole
NKK Switches M2T12TXW41-FH	No Marking	25000 Steps	Process Sealed	125 V	-30 ░C	85 °C	CSA UL	4 A 6 A		PC Pin	On-On	SPDT	30 V	Concave (Standard V)	Right Angle Through Hole Vertical
NKK Switches M2T12TXW30	Varies by Cap	25000 Steps	Process Sealed	125 V	-30 ░C	85 °C	CSA UL	4 A 6 A		PC Pin	On-On	SPDT	30 V	Actuator Arm Cap Required	Through Hole Right Angle
NKK Switches M2T12TXW41-DC	No Marking	25000 Steps	Process Sealed	125 V	-30 ░C	85 °C	CSA UL	4 A 6 A	Red	PC Pin	On-On	SPDT	30 V	Concave (Standard V)	Right Angle Through Hole Vertical
NKK Switches M2T12TXG41-DB	No Marking	50000 Cycles	Process Sealed	28 V	-30 ░C	85 °C	CSA UL	0.4 VA	White	PC Pin	On-On	SPDT	28 V	Concave (Standard V)	Right Angle Through Hole Vertical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.70

General part information

Rocker Switch SPDT 6A (AC), 4A (DC) 125 V Through Hole, Right Angle, Vertical
