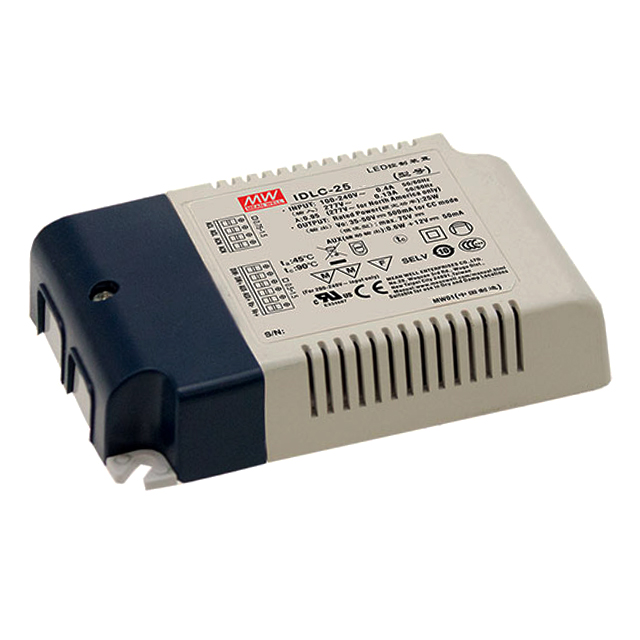

IDLC-25A-350

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 49-70V 350MA

Search across all available documentation for this part.

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 49-70V 350MA

Technical Specifications

Parameters and characteristics for this part

Part	Power (Watts)	Dimming	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output [Min]	Voltage - Output [Max]	Features	Topology	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Voltage - Input (Min) [Min]	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Number of Outputs	Type	Approval Agency
MEAN WELL USA Inc. IDLC-25-700	25 W	Analog PWM	295 VAC	Chassis Mount	25.2 V	36 V	SCP	AC DC Converter	-20 C	90 °C	Terminal Block	90 VAC	81.5 %	700 mA	3750 V	1	Constant Current	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDLC-25-1050	25 W	Analog PWM	295 VAC	Chassis Mount	16.8 V	24 V	SCP	AC DC Converter	-20 C	90 °C	Terminal Block	90 VAC	80 %	1.05 A	3750 V	1	Constant Current	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDLC-25A-350	25 W	Analog PWM	295 VAC	Chassis Mount	49 V	70 V	SCP	AC DC Converter	-20 C	90 °C	Terminal Block	90 VAC		350 mA	3750 V	1	Constant Current	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDLC-25A-1050	25 W	Analog PWM	295 VAC	Chassis Mount	16.8 V	24 V	SCP	AC DC Converter	-20 C	90 °C	Terminal Block	90 VAC	80 %	1.05 A	3750 V	1	Constant Current	CB CCC CE cURus ENEC
MEAN WELL USA Inc. IDLC-25-350	25 W	Analog PWM	295 VAC	Chassis Mount	49 V	70 V	SCP	AC DC Converter	-20 C	90 °C	Terminal Block	90 VAC		350 mA	3750 V	1	Constant Current	CB CCC CE cURus ENEC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.02

General part information

350mA 49 ~ 70V Constant Current LED Driver AC DC Converter Topology 1 Output

Technical documentation and resources
