ANT6230LL01R1575A
ActivePulse Electronics
RF ANT 1.575GHZ CHIP SOLDER SMD
ANT6230LL01R1575A
ActivePulse Electronics
RF ANT 1.575GHZ CHIP SOLDER SMD
Description
General part information
ANT6230 Series

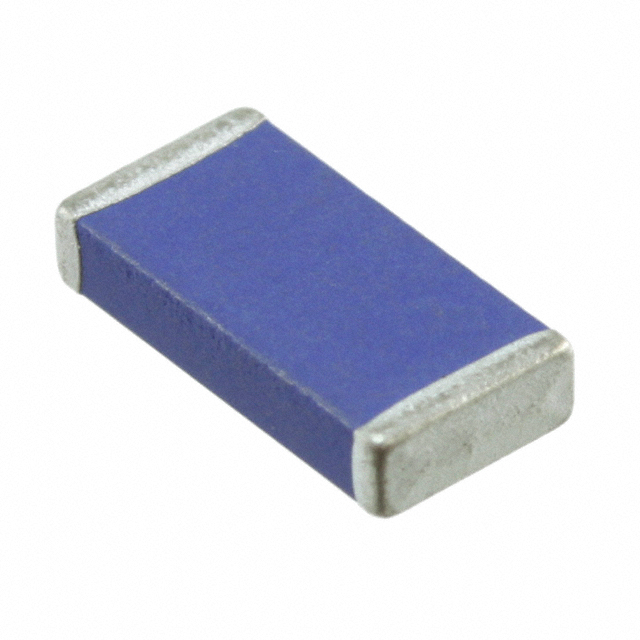

RF ANTENNA GPS Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT6230LL01R1575A |
|---|---|
| Antenna Type | Chip |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Max) | 1.602 GHz |
| Frequency Range (Min) | 1.548 GHz |
| Gain | 2.52 dBi |
| Height (Max) | 0.049 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Power - Max | 1 VA |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
