Q-2502S000H108i

Active

Amphenol Custom Cable

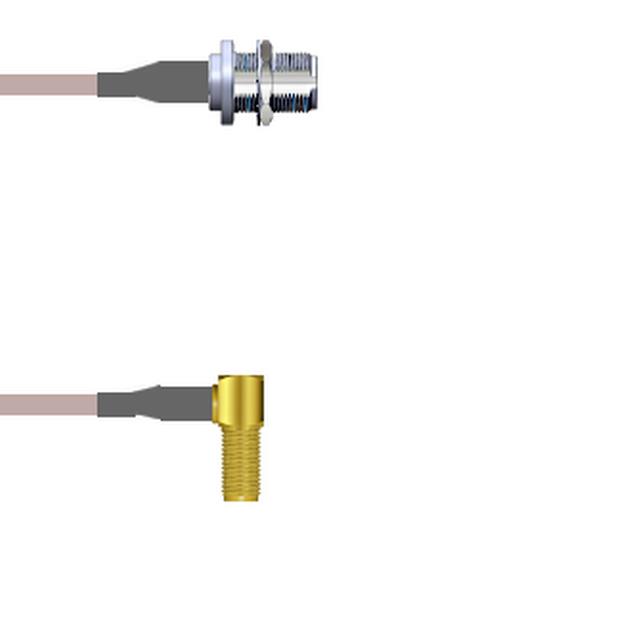

CBL ASSY SMA-NTYPE JACK-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2502S000H108i

Active

Amphenol Custom Cable

CBL ASSY SMA-NTYPE JACK-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2502S000H108i

1st Connector	SMA Jack, Right Angle
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-2502S0 Series

Part	Frequency - Max [Max]	2nd Connector Mounting Type	2nd Contact Gender	2nd Connector Mounting Feature	Style	Color	1st Connector Mounting Type	1st Contact Gender	Features	1st Connector	Length	Length	Cable Type	Overall Impedance	1st Connector Mounting Feature	2nd Connector	Length	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2502S000H006i	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	152.4 mm	6 in	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack
Amphenol Custom Cable Q-2502S000H060i	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	1.5 m	5 '	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	5 ft
Amphenol Custom Cable Q-2502S000H.25M	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack			RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack		9.843 "	250 mm
Amphenol Custom Cable Q-2502S000H018i	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack			RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack			457.2 mm	457.2 mm
Amphenol Custom Cable Q-2502S000H024i	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	609.6 mm	24 "	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack
Amphenol Custom Cable Q-2502S000H.75M	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	750 mm	29.53 "	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack
Amphenol Custom Cable Q-2502S000H003M	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	3 m	118.1 in	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	9.8 '
Amphenol Custom Cable Q-2502S000H1.5M	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	1.5 m	59.1 in	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	4.9 ft
Amphenol Custom Cable Q-2502S000H036i	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	91.44 cm	36 in	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack
Amphenol Custom Cable Q-2502S000H108i	11 GHz	Panel Mount	Female	Bulkhead - Front Side Nut	SMA to N-Type	Copper	Panel Mount	Female	Shielded	Right Angle SMA Jack	2.7 m	108 in	RG-142	50 Ohms	Bulkhead - Front Side Nut	N-Type Jack	9 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 219.19
		25	$ 214.89
		50	$ 210.59
		100	$ 206.29
		250	$ 201.99

Description

General part information

Q-2502S0 Series

Cable Assembly Coaxial SMA to N-Type RG-142 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
