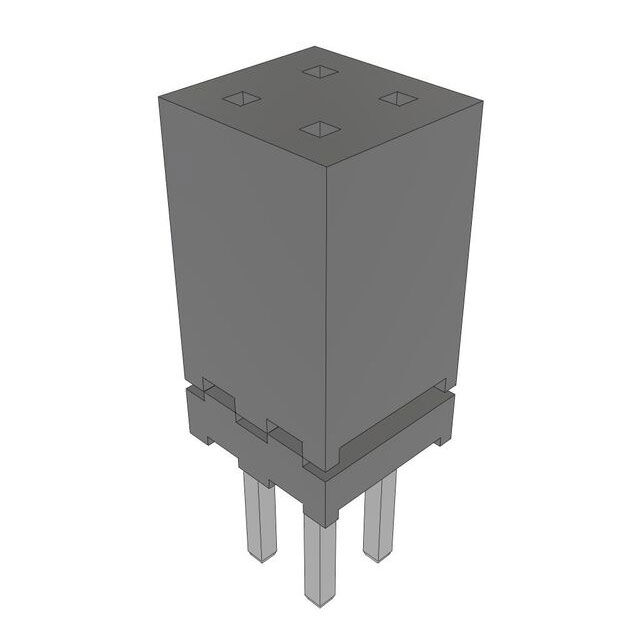

ESQT-102-02-L-D-435

Active

Samtec Inc.

CONN SOCKET 4POS 0.079 GOLD PCB

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESQT-102-02-L-D-435

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.415 in
Contact Length - Post	10.54 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

ESQT-102 Series

...

Part	Number of Positions Loaded	Contact Finish - Post	Style	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions	Contact Material	Contact Finish - Mating	Insulation Color	Termination	Insulation Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. ESQT-102-02-F-D-800	All	Tin	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	3 µin	0.076 µm	UL94 V-0	2	0.8 in	20.32 mm	Through Hole	0.05 in	1.27 mm	4.5 A	Forked
Samtec Inc. ESQT-102-02-M-D-550	All	Tin	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	20 µin	0.51 µm	UL94 V-0	2	0.55 in	13.97 mm	Through Hole			4.5 A	Forked	7.62 mm	0.3 "
Samtec Inc. ESQT-102-02-L-D-435	All	Tin	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	10 çin	0.25 çm	UL94 V-0	2	0.435 in	11.05 mm	Through Hole	0.415 in	10.54 mm	4.5 A	Forked
Samtec Inc. ESQT-102-02-L-S-755	All	Tin	Board to Board Cable	Square	-55 °C	125 °C			Push-Pull	0.079 in	2 mm	2	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	10 çin	0.25 çm	UL94 V-0	1	0.755 in	19.18 mm	Through Hole			4.5 A	Forked	2.41 mm	0.095 in
Samtec Inc. ESQT-102-03-M-D-375	All	Tin	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	20 µin	0.51 µm	UL94 V-0	2	0.375 in	9.53 mm	Through Hole	0.083 in	2.11 mm	4.5 A	Forked
Samtec Inc. ESQT-102-02-F-D-595	All	Tin	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	3 µin	0.076 µm	UL94 V-0	2	0.595 in	15.11 mm	Through Hole	0.255 in	6.48 mm	4.5 A	Forked
Samtec Inc. ESQT-102-03-F-D-405	All	Tin	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	3 µin	0.076 µm	UL94 V-0	2	0.405 in	10.29 mm	Through Hole	0.053 in	1.35 mm	4.5 A	Forked
Samtec Inc. ESQT-102-03-L-S-350	All	Tin	Board to Board Cable	Square	-55 °C	125 °C			Push-Pull	0.079 in	2 mm	2	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	10 çin	0.25 çm	UL94 V-0	1			Through Hole	0.108 in	2.75 mm	4.5 A	Forked			0.35 in	8.89 mm
Samtec Inc. ESQT-102-03-G-D-400	All	Gold	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	20 µin	0.51 µm	UL94 V-0	2	0.4 in	10.16 mm	Through Hole	0.058 "	1.47 mm	4.5 A	Forked					3 µin	0.076 µm
Samtec Inc. ESQT-102-02-L-D-310	All	Tin	Board to Board Cable	Square	-55 °C	125 °C	0.079 in	2 mm	Push-Pull	0.079 in	2 mm	4	Phosphor Bronze	Gold	Black	Solder	Liquid Crystal Polymer (LCP)	Elevated Socket	10 çin	0.25 çm	UL94 V-0	2	0.31 in	7.87 mm	Through Hole	0.54 in	13.72 mm	4.5 A	Forked

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.94

Description

General part information

ESQT-102 Series

4 Position Elevated Socket Connector 0.079" (2.00mm) Through Hole Gold
