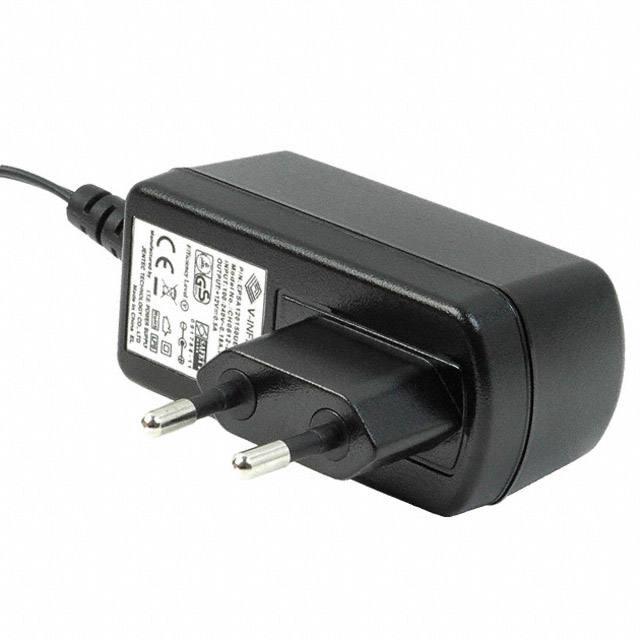

EPSA120100UE-P5P-EJ

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Search across all available documentation for this part.

EPSA120100UE-P5P-EJ

Obsolete

CUI Inc.

AC/DC WALL MOUNT ADAPTER 12V 12W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPSA120100UE-P5P-EJ	EPSA120100 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	cULus	cULus
Cord Length	1.83 m	1.83 m
Cord Length	72 in	72 in
Current - Output (Max) [Max]	1 A	1 A
Efficiency	Level V	Level V
Form	Wall Mount (Class II)	Wall Mount (Class II)
Input Connector	CEE 7/16	CEE 7/16, NEMA 1-15P
Input Type	Fixed Blade	Fixed Blade
No Load Power Consumption	300 mW	300 mW
Operating Temperature [Max]	40 °C	40 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug R/A, Barrel Plug
Output Connector	-	9.5 mm
Output Connector	-	5.5 mm
Output Connector [diameter]	2.1 mm, 5.5 mm	2.1 - 5.5 mm
Output Connector [x]	9.5 mm	2.1 - 9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	12 W	12 W
Region Utilized	Europe	Europe, North America
Size / Dimension [x]	75 mm	75 mm
Size / Dimension [x]	2.95 in	2.95 in
Size / Dimension [y]	35 mm	35 mm
Size / Dimension [y]	1.38 "	1.38 "
Size / Dimension [z]	47 mm	47 mm
Size / Dimension [z]	1.85 in	1.85 in
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Output	12 V	12 V

EPSA120100 Series

AC/DC WALL MOUNT ADAPTER 12V 12W

Part	Input Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Form	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Efficiency	Cord Length	Cord Length	Power (Watts)	Approval Agency	Input Connector	Voltage - Output	Current - Output (Max) [Max]	Region Utilized	Applications	No Load Power Consumption	Polarization	Output Connector [z]	Output Connector [y]	Output Connector	Output Connector [x]	Output Connector [diameter]
CUI Inc. EPSA120100UE-P5RP-EJ	Fixed Blade	35 mm	1.38 "	47 mm	1.85 in	75 mm	2.95 in	Wall Mount (Class II)	90 VAC	264 VAC	40 °C	Level V	1.83 m	72 in	12 W	cULus	CEE 7/16	12 V	1 A	Europe	ITE (Commercial)	300 mW	Positive Center	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm
CUI Inc. EPSA120100U-P5P-EJ	Fixed Blade	35 mm	1.38 "	47 mm	1.85 in	75 mm	2.95 in	Wall Mount (Class II)	90 VAC	264 VAC	40 °C	Level V	1.83 m	72 in	12 W	cULus	NEMA 1-15P	12 V	1 A	North America	ITE (Commercial)	300 mW	Positive Center			Barrel Plug	9.5 mm	2.1 mm, 5.5 mm
CUI Inc. EPSA120100U-P6RP-EJ	Fixed Blade	35 mm	1.38 "	47 mm	1.85 in	75 mm	2.95 in	Wall Mount (Class II)	90 VAC	264 VAC	40 °C	Level V	1.83 m	72 in	12 W	cULus	NEMA 1-15P	12 V	1 A	North America	ITE (Commercial)	300 mW	Positive Center			Barrel Plug R/A	9.5 mm	2.5 mm, 5.5 mm
CUI Inc. EPSA120100UE-P5P-EJ	Fixed Blade	35 mm	1.38 "	47 mm	1.85 in	75 mm	2.95 in	Wall Mount (Class II)	90 VAC	264 VAC	40 °C	Level V	1.83 m	72 in	12 W	cULus	CEE 7/16	12 V	1 A	Europe	ITE (Commercial)	300 mW	Positive Center			Barrel Plug	9.5 mm	2.1 mm, 5.5 mm
CUI Inc. EPSA120100U-P5RP-EJ	Fixed Blade	35 mm	1.38 "	47 mm	1.85 in	75 mm	2.95 in	Wall Mount (Class II)	90 VAC	264 VAC	40 °C	Level V	1.83 m	72 in	12 W	cULus	NEMA 1-15P	12 V	1 A	North America	ITE (Commercial)	300 mW	Positive Center	9.5 mm	5.5 mm	Barrel Plug R/A	2.1 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EPSA120100 Series

12V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input

Documents

Technical documentation and resources

No documents available
