CGRM4001-HF

Active

Comchip Technology

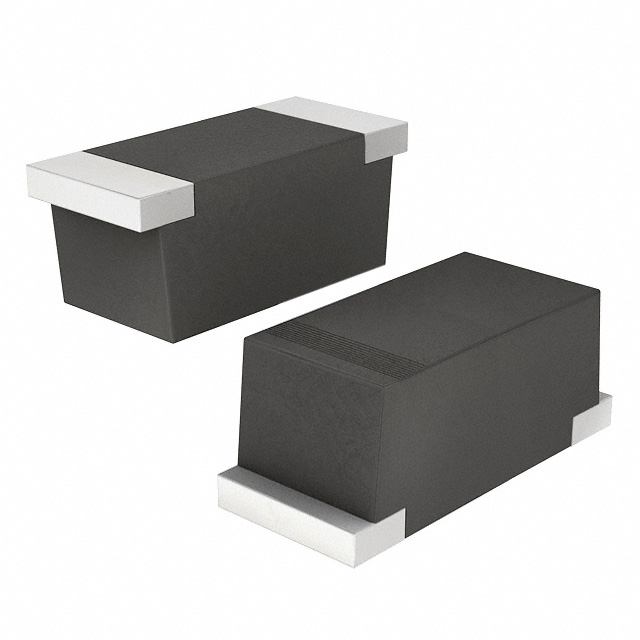

DIODE GP 50V 1A MINI SMA/SOD123

Search across all available documentation for this part.

Active

Comchip Technology

DIODE GP 50V 1A MINI SMA/SOD123

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CGRM4001-HF	CGRM4001 Series

Capacitance @ Vr, F	15 pF	15 pF
Current - Average Rectified (Io)	1 A	1 A
Current - Reverse Leakage @ Vr	5 µA	5 µA
Mounting Type	Surface Mount	Surface Mount
Operating Temperature - Junction [Max]	150 °C	150 °C
Operating Temperature - Junction [Min]	-55 °C	-55 °C
Package / Case	SOD-123T	SOD-123T
Speed	Standard Recovery >500ns	Standard Recovery >500ns
Speed	200 mA	200 mA
Supplier Device Package	Mini SMA/SOD-123	Mini SMA/SOD-123
Technology	Standard	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	50 V	50 V
Voltage - Forward (Vf) (Max) @ If	1.1 V	1.1 V

DIODE GP 50V 1A MINI SMA/SOD123

Part	Technology	Supplier Device Package	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Average Rectified (Io)	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Mounting Type	Capacitance @ Vr, F	Current - Reverse Leakage @ Vr
Comchip Technology CGRM4001-G	Standard	Mini SMA/SOD-123	SOD-123T	150 °C	-55 °C	1 A	1.1 V	50 V	Standard Recovery >500ns	200 mA	Surface Mount	15 pF	5 µA
Comchip Technology CGRM4001-HF	Standard	Mini SMA/SOD-123	SOD-123T	150 °C	-55 °C	1 A	1.1 V	50 V	Standard Recovery >500ns	200 mA	Surface Mount	15 pF	5 µA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 50 V 1A Surface Mount Mini SMA/SOD-123
