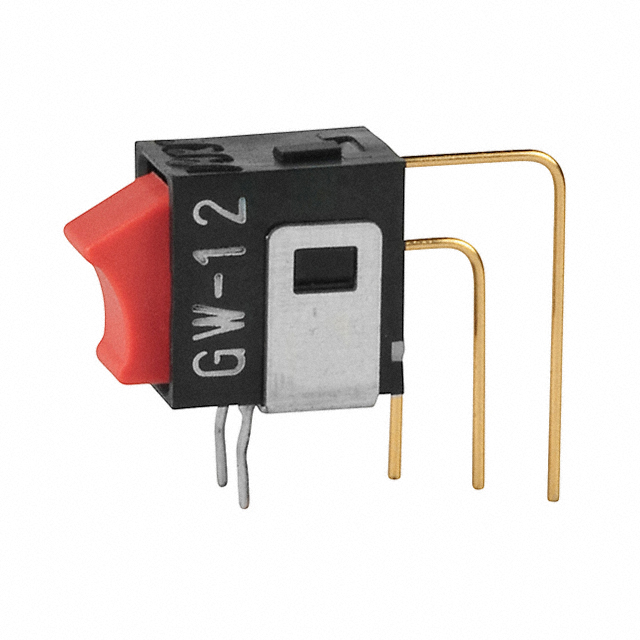

GW12RCV

Active

NKK Switches

ROCKER SWITCH, NON ILLUMINATED, SPDT, ON-NONE-ON, RED, THROUGH HOLE, 100 MA

Search across all available documentation for this part.

Active

NKK Switches

ROCKER SWITCH, NON ILLUMINATED, SPDT, ON-NONE-ON, RED, THROUGH HOLE, 100 MA

Technical Specifications

Parameters and characteristics for this part

Specification	GW12RCV

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Red
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Sealed - Flux Protection
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Circuit	Features	Actuator Marking	Switch Function	Voltage Rating - AC	Actuator Type	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Color - Actuator/Cap	Voltage Rating - DC	Electrical Life	Current Rating (Amps)	Termination Style
NKK Switches GW12RCV	SPDT	Sealed - Flux Protection	No Marking	On-On	28 V	Concave (Curved)	CSA UL	-30 ░C	85 °C	Right Angle Through Hole Vertical	Red	28 V	50000 Cycles	0.4 VA	PC Pin
NKK Switches GW12RCP	SPDT	Sealed - Flux Protection	No Marking	On-On	28 V	Concave (Curved)	CSA UL	-30 ░C	85 °C	Through Hole	Red	28 V	50000 Cycles	0.4 VA	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle, Vertical
