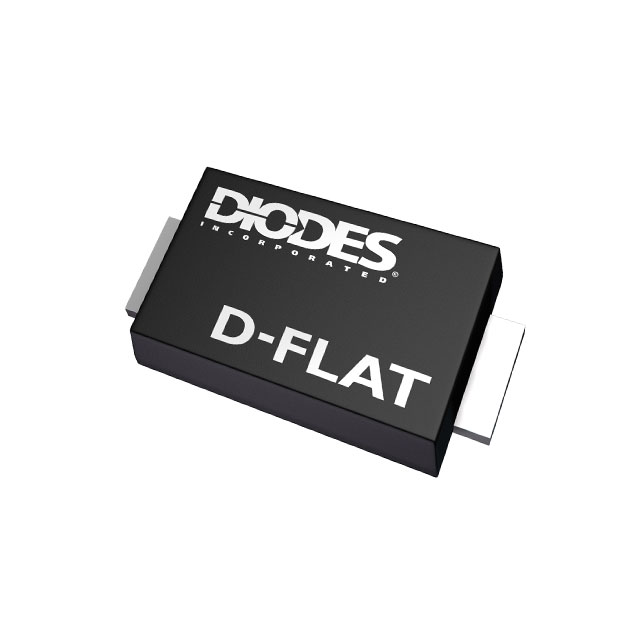

US1MDF-13
ActiveDiodes Inc
DIODE GEN PURP 1KV 1A DFLAT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | US1MDF-13 |
|---|---|
| Capacitance @ Vr, F | 10 pF |
| Current - Average Rectified (Io) | 1 A |
| Current - Reverse Leakage @ Vr | 5 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |
| Package / Case | 2-SMD, Flat Leads |
| Reverse Recovery Time (trr) | 75 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | D-Flat |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1000 V |
| Voltage - Forward (Vf) (Max) @ If | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.11 | |||
| 5000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.39 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.12 | |||
| 2000 | $ 0.11 | |||
| 5000 | $ 0.10 | |||
| Tape & Reel (TR) | 10000 | $ 0.09 | ||
Description
General part information
US1MDFQ Series
The US2JDF is a rectifier packaged in the low profile D-FLAT package. Providing ultra-fast recovery time for high efficiency, this device is ideal for use in general rectification applications.
