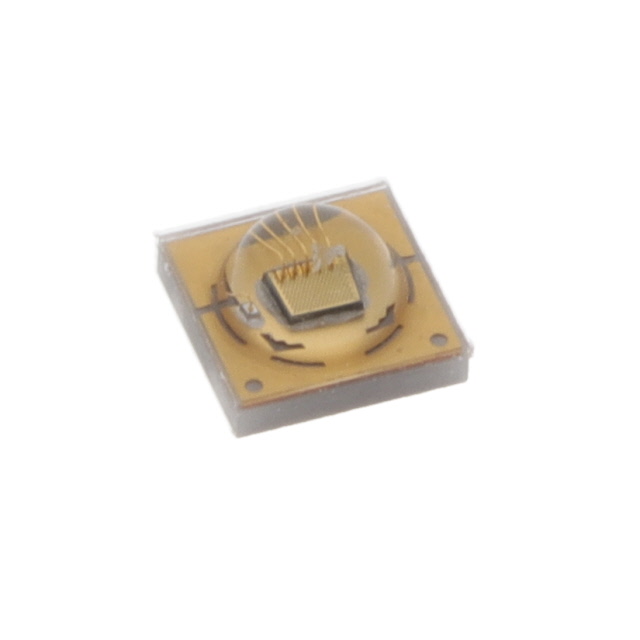

Specification	QBHP684E-V940Y2

Current - DC Forward (If) (Max)	1.2 A
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Orientation	Top View
Package / Case	1414 (3535 Metric)
Type	Infrared (IR)
Viewing Angle	25 °
Voltage - Forward (Vf) (Typ)	2.3 V
Wavelength	940 nm

QBHP684 Series

Part	Viewing Angle	Wavelength	Current - DC Forward (If) (Max)	Mounting Type	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Type	Voltage - Forward (Vf) (Typ)	Orientation	Radiant Intensity (Ie) Min	Height - Seated (Max)	Temperature - Test	Voltage - Forward (Vf) (Typ) Color	Voltage - Forward (Vf) (Typ) (Green)	Voltage - Forward (Vf) (Typ) (Blue)	Voltage - Forward (Vf) (Typ) (Red)	Lumens/Watt Color	Lumens/Watt (Red)	Lumens/Watt (White)	Lumens/Watt (Green)	Lumens/Watt (Blue)	Current - Max Colors	Current - Max (White)	Current - Max (Blue)	Current - Max (Green)	Current - Max (Red)	Color	Wavelength Colors	Wavelength (Red)	Wavelength (Blue)	Wavelength (Green)	Package Name	Luminous Flux Colors	Luminous Flux (Green)	Luminous Flux (Blue)	Luminous Flux (Red)	Size / Dimension Length	Size / Dimension Width	Current - Test (Green)	Current - Test Colors	Current - Test (White)	Current - Test (Blue)	Current - Test (Red)
QT Brightek (QTB) QBHP684E-UV365AS	60 °	367 nm	700 mA	Surface Mount	2-SMD No Lead Exposed Pad	80 °C	-40 °C	Ultraviolet (UV)	3.4 V	Top View
QT Brightek (QTB) QBHP684E-UV265N	120 °	265 nm	150 mA	Surface Mount	1414 (3535 Metric)	50 °C	-10 °C	Ultraviolet (UV)	6 V	Top View	7 mW/sr
QT Brightek (QTB) QBHP684-RGBCWBU	120 °			Surface Mount	1414 (3535 Metric)							0.081 in	25 °C	Blue Green Red White	3.2 V	3.2 V	2.4 V	Blue Green Red White	42 lm/W	179 lm/W	67 lm/W	13 lm/W	Blue Green Red White	350 mA	350 mA	350 mA	350 mA	Blue Green Red White (RGBW)	Blue Green Red	630 nm	460 nm	520 nm	1414	Blue Green Red	75 lm	200 lm	35 lm	0.136 in	0.136 in	350 mA	Blue Green Red White	350 mA	350 mA	350 mA
QT Brightek (QTB) QBHP684E-UV265	120 °	265 nm	40 mA	Surface Mount	1414 (3535 Metric)	50 °C	-10 °C	Ultraviolet (UV)	6 V	Top View	1.6 mW/sr
QT Brightek (QTB) QBHP684-RGBBU	120 °			Surface Mount	1414 (3535 Metric)							0.085 in	25 °C	Blue Green Red	3.2 V	3.2 V	2.4 V	Blue Green Red	42 lm/W		67 lm/W	13 lm/W	Blue Green Red		350 mA	350 mA	350 mA	Blue (RGB) Green Red	Blue Green Red	630 nm	460 nm	520 nm	1414	Blue Green Red	75 lm	15 lm	35 lm	0.136 in	0.136 in	350 mA	Blue Green Red		350 mA	350 mA
QT Brightek (QTB) QBHP684E-V850Y2	25 °	850 nm	1.2 A	Surface Mount	1414 (3535 Metric)	85 °C	-40 °C	Infrared (IR)	2.3 V	Top View
QT Brightek (QTB) QBHP684E-UV405BS	120 °	405 nm	700 mA	Surface Mount	2-SMD No Lead Exposed Pad	80 °C	-40 °C	Ultraviolet (UV)	3.4 V	Top View
QT Brightek (QTB) QBHP684E-V940Y2	25 °	940 nm	1.2 A	Surface Mount	1414 (3535 Metric)	85 °C	-40 °C	Infrared (IR)	2.3 V	Top View
QT Brightek (QTB) QBHP684E-UV280H	120 °	278 nm	150 mA	Surface Mount	1414 (3535 Metric)	50 °C	-10 °C	Ultraviolet (UV)	7 V	Top View
QT Brightek (QTB) QBHP684E-UV385AS	60 °	385 nm	700 mA	Surface Mount	2-SMD No Lead Exposed Pad	80 °C	-40 °C	Ultraviolet (UV)	3.4 V	Top View
