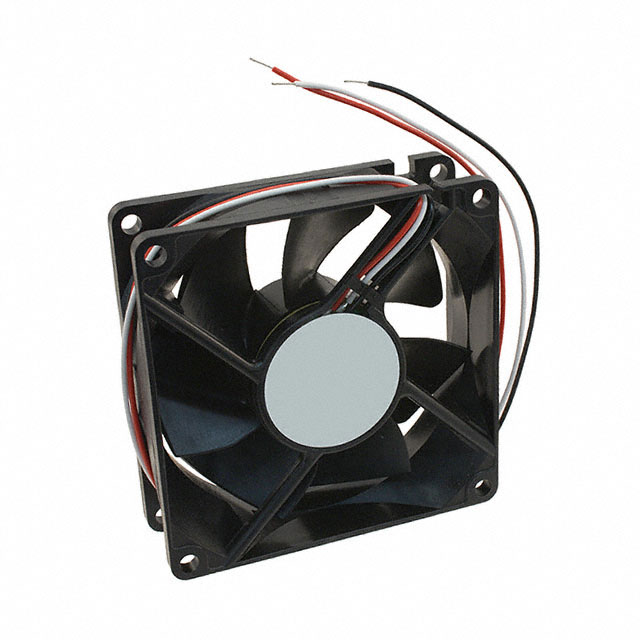

Specification	3110KL-04W-B79-D00

Air Flow	45.9 CFM
Approval Agency	CSA, UL, CE, VDE
Bearing Type	Ball
Current Rating	0.29 A
Fan Type	Tubeaxial
Features	Locked Rotor Sensor
Lifetime	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	40 dB
Operating Temperature (Max)	140 °F
Operating Temperature (Min)	14 °F
Power (Watts)	3.86 W
RPM	4000 RPM
Size / Dimension Height	80 mm
Size / Dimension Length	80 mm
Size / Dimension Shape	Square
Static Pressure	0.258 in H2O
Termination	3 Wire Leads
Termination Leads Count	3
Termination Type	Wire Leads
Voltage - Rated	12 VAC
Voltage Range (Max)	13.8 VDC
Voltage Range (Min)	6 VDC
Weight	0.209 lb
Width	25 mm

3110KL Series

Part	Operating Temperature (Max)	Operating Temperature (Min)	Air Flow	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Height	Weight	Fan Type	Approval Agency	Termination Leads Count	Termination Type	Termination	Noise	Width	RPM	Static Pressure	Voltage - Rated	Power (Watts)	Bearing Type	Current Rating	Lifetime	Material - Blade	Material - Frame	Voltage Range (Min)	Voltage Range (Max)	Features
NMB TECHNOLOGIES 3110KL-05W-B60-G00	158 °F	14 °F	40.2 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	35 dB	25 mm	3400 RPM	0.161 in H2O	24 VAC	3.36 W	Ball	140 mA	70000 Hrs	Plastic	Plastic	10 VDC	26.4 VDC
NMB TECHNOLOGIES 3110KL-04W-B79-D00	140 °F	14 °F	45.9 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	40 dB	25 mm	4000 RPM	0.258 in H2O	12 VAC	3.86 W	Ball	0.29 A	70000 Hrs	Plastic	Plastic	6 VDC	13.8 VDC	Locked Rotor Sensor
NMB TECHNOLOGIES 3110KL-04W-B50-G00	158 °F	14 °F	38.8 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	34 dB	25 mm	3250 RPM	0.149 in H2O	12 VAC	2.76 W	Ball	0.23 A	70000 Hrs	Plastic	Plastic	6 VDC	13.8 VDC
NMB TECHNOLOGIES 3110KL-05W-B30-D00	158 °F	14 °F	31.8 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	28 dB	25 mm	2700 RPM	0.106 in H2O	24 VAC	1.92 W	Ball	0.08 A	70000 Hrs	Plastic	Plastic	10 VDC	27.6 VDC
NMB TECHNOLOGIES 3110KL-05W-B59-G00	158 °F	14 °F	38.8 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	34 dB	25 mm	3250 RPM	0.149 in H2O	24 VAC	2.88 W	Ball	120 mA	70000 Hrs	Plastic	Plastic	10 VDC	27.6 VDC	Locked Rotor Sensor
NMB TECHNOLOGIES 3110KL-04W-B60-G00	158 °F	14 °F	40.2 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	35 dB	25 mm	3400 RPM	0.161 in H2O	12 VAC	3.12 W	Ball	0.26 A	70000 Hrs	Plastic	Plastic	6 VDC	13 V
NMB TECHNOLOGIES 3110KL-05W-B40-D00	158 °F	14 °F	35.3 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	31 dB	25 mm	3000 RPM	0.129 in H2O	24 VAC	2.4 W	Ball	100 mA	70000 Hrs	Plastic	Plastic	10 VDC	27.6 VDC
NMB TECHNOLOGIES 3110KL-05W-B49-G00	158 °F	14 °F	35.3 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	3	Wire Leads	3 Wire Leads	31 dB	25 mm	3000 RPM	0.129 in H2O	24 VAC	2.4 W	Ball	100 mA	70000 Hrs	Plastic	Plastic	10 VDC	27.6 VDC	Locked Rotor Sensor
NMB TECHNOLOGIES 3110KL-04W-B20-G00	158 °F	14 °F	28.2 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	25 dB	25 mm	2400 RPM	0.087 in H2O	12 VAC	1.32 W	Ball	110 mA	70000 Hrs	Plastic	Plastic	6 VDC	13.8 VDC
NMB TECHNOLOGIES 3110KL-04W-B50-D00	158 °F	14 °F	38.8 CFM	80 mm	Square	80 mm	0.209 lb	Tubeaxial	CE CSA UL VDE	2 leads	Wire Leads	2 Wire Leads	34 dB	25 mm	3250 RPM	0.149 in H2O	12 VAC	2.76 W	Ball	0.23 A	70000 Hrs	Plastic	Plastic	6 VDC	13.8 VDC
