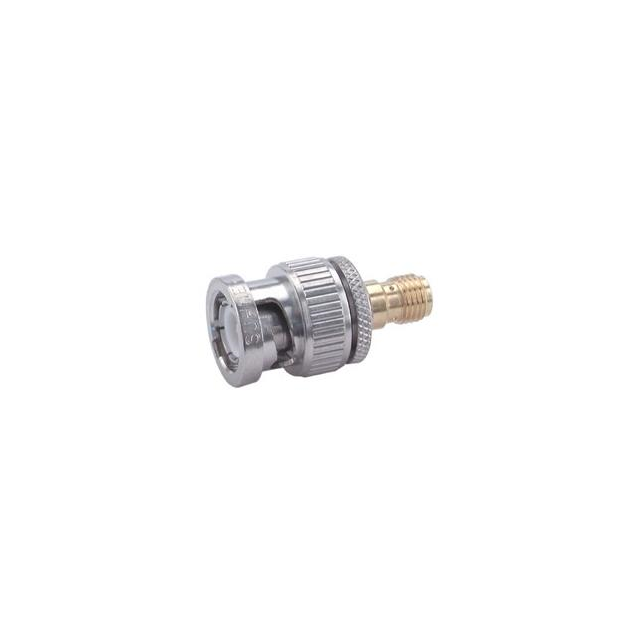

Specification	33_BNC-SMA-50-1/1--_UE

Adapter Series	BNC to SMA
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male, Female
Conversion Type	Between Series
Convert From (Adapter End)	Male Pin, BNC Plug
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	SMA Jack
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Threaded, Bayonet Lock
Frequency - Max	4 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Style	Straight

33_BNC-SMA Series

Part	Center Contact Plating	Adapter Series	Frequency - Max	Convert From (Adapter End)	Adapter Type	Center Gender	Fastening Type	Style	Convert To (Adapter End) Gender	Convert To (Adapter End) Type	Conversion Type	Mounting Type	Impedance	Dielectric Material	Center Contact Material	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Mating Cycles	Body Finish
Huber+Suhner, Inc. 33_BNC-SMA-50-1/1--_UE	Gold	BNC to SMA	4 GHz	BNC Plug Male Pin	Plug to Jack	Female Male	Bayonet Lock Threaded	Straight	Female Socket	SMA Jack	Between Series	Free Hanging (In-Line)	50 Ohm	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Beryllium Copper	-65 °C	165 °C	Beryllium Copper Brass	500 cycles	Gold
