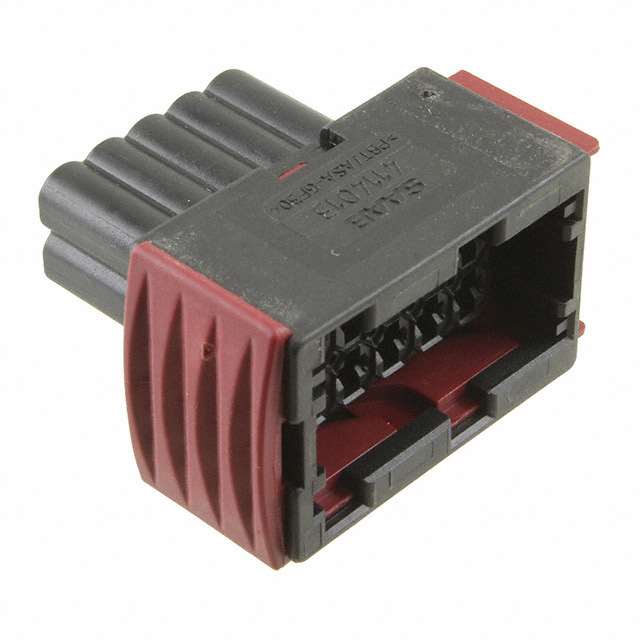

1-963214-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 10POS 5.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-963214-1
ActiveTE Connectivity AMP Connectors
CONN RCPT HSG 10POS 5.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-963214-1 | 963214 Series |
|---|---|---|
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Features | Sealed | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 10 | 10 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Row Spacing [Max] | 0.236 in | 0.236 in |
| Row Spacing [Max] | 6 mm | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.78 | |
| 10 | $ 2.48 | |||
| 25 | $ 2.46 | |||
| 50 | $ 2.44 | |||
| 100 | $ 2.23 | |||
963214 Series
CONN RCPT HSG 10POS 5.00MM
| Part | Contact Termination | Note | Pitch [x] | Pitch [x] | Mounting Type | Color | Insulation Material | Contact Type | Features | Row Spacing [Max] | Row Spacing [Max] | Number of Rows | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-963214-1 | Crimp | Contacts Not Included | 5 mm | 0.197 in | Free Hanging (In-Line) | Black | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Sealed | 0.236 in | 6 mm | 2 | 10 | Receptacle |
TE Connectivity AMP Connectors 2-963214-1 | Crimp | Contacts Not Included | 5 mm | 0.197 in | Free Hanging (In-Line) | Black | Polybutylene Terephthalate (PBT), Glass Filled | Female Socket | Sealed | 0.236 in | 6 mm | 2 | 10 | Receptacle |
Description
General part information
963214 Series
10 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)
