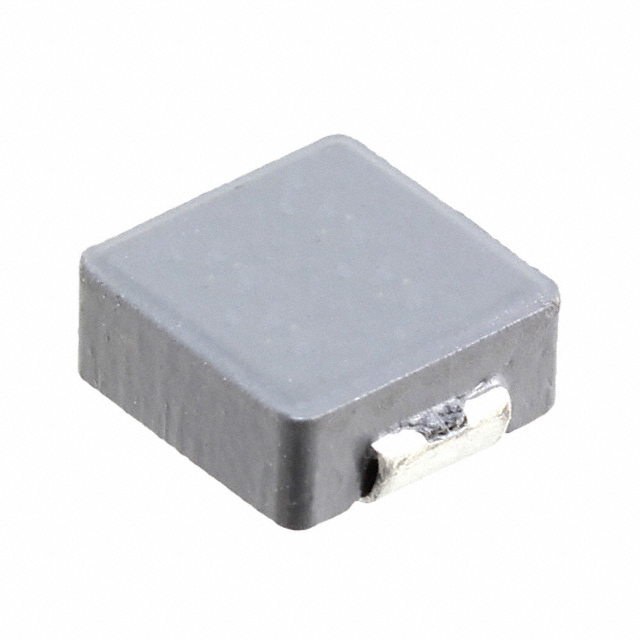

Specification	SRP7028A-R47M

Current - Saturation (Isat)	26 A
Current Rating	17.5 A
DC Resistance (DCR) (Max)	4.2 mOhm
Frequency - Self Resonant	80 MHz
Height - Seated (Max)	0.118 in
Inductance	470 nH
Inductance Frequency - Test	100 kHz
Material - Core	Carbonyl Powder
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-40 °C
Package / Case	Nonstandard
Q	10
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.287 in
Size / Dimension Width	0.26 in
Tolerance	20 %
Type	Drum Core, Wirewound

SRP7028A Series

Part	DC Resistance (DCR) (Max)	Type	Ratings	Shielding	Inductance Frequency - Test	Package / Case	Current - Saturation (Isat)	Material - Core	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Mounting Type	Frequency - Self Resonant	Q	Current Rating	Tolerance	Operating Temperature (Min)	Operating Temperature (Max)	Inductance
Bourns Inc. SRP7028A-1R8M	17 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	16 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	36 MHz	20	8.5 A	20 %	-40 °C	150 °C	1.8 µH
Bourns Inc. SRP7028A-R10M	1.7 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	60 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	300 MHz	5	32.5 A	20 %	-40 °C	150 °C	100 nH
Bourns Inc. SRP7028A-8R2M	68 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	7.5 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	17 MHz	20	4 A	20 %	-40 °C	150 °C	8.2 µH
Bourns Inc. SRP7028A-220M	190 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	3.5 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	10 MHz	20	2 A	20 %	-40 °C	150 °C	22 µH
Bourns Inc. SRP7028A-2R5M	22 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	13 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	30 MHz	20	7 A	20 %	-40 °C	150 °C	2.5 µH
Bourns Inc. SRP7028A-R33M	3.9 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	32 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	140 MHz	10	20 A	20 %	-40 °C	150 °C	330 nH
Bourns Inc. SRP7028A-1R0M	10 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	22 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	58 MHz	20	11 A	20 %	-40 °C	150 °C	1 µH
Bourns Inc. SRP7028A-R47M	4.2 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	26 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	80 MHz	10	17.5 A	20 %	-40 °C	150 °C	470 nH
Bourns Inc. SRP7028A-R22Y	2.8 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	40 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	150 MHz	5	23 A	30 %	-40 °C	150 °C	220 nH
Bourns Inc. SRP7028A-6R8M	60 mOhm	Drum Core Wirewound	AEC-Q200	Shielded	100 kHz	Nonstandard	8 A	Carbonyl Powder	0.118 in	0.287 in	0.26 in	Surface Mount	18 MHz	20	4.5 A	20 %	-40 °C	150 °C	6.8 µH
