146-93-308-41-013000

Active

Mill-Max Manufacturing Corp.

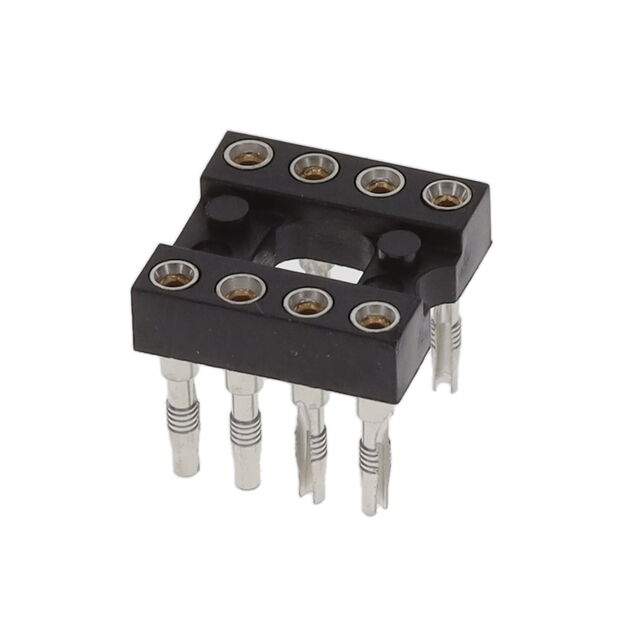

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

146-93-308-41-013000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 8POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	146-93-308-41-013000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Press-Fit
Termination Post Length	4.45 mm
Termination Post Length	0.175 in
Type	0.3 "
Type	7.62 mm
Type	DIP

146-93 Series

Part	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Material - Mating	Termination Post Length	Termination Post Length	Contact Finish - Post	Termination	Pitch - Post	Pitch - Post	Housing Material	Contact Material - Post	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Type	Type	Type	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 146-93-640-41-013000	40	20	2	Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.6 in	15.24 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-422-41-012000	22			Beryllium Copper	3.05 mm	0.12 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.4 in	10.16 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-316-41-013000	16			Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.3 "	7.62 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-628-41-013000	28			Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.6 in	15.24 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-314-41-013000	14			Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.3 "	7.62 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-318-41-012000	18			Beryllium Copper	3.05 mm	0.12 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.3 "	7.62 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-324-41-013000	24			Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.3 "	7.62 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-624-41-013000	24			Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.6 in	15.24 mm	3 A	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 146-93-632-41-013000				Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.6 in	15.24 mm	3 A	0.1 in	2.54 mm	2 x 16	32
Mill-Max Manufacturing Corp. 146-93-308-41-013000	8			Beryllium Copper	4.45 mm	0.175 in	Tin-Lead	Press-Fit	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Brass Alloy	-55 °C	125 °C	Through Hole	Gold	200 µin	5.08 µm	30 Áin	0.76 Ám	Open Frame	DIP	0.3 "	7.62 mm	3 A	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 15.93
		10	$ 14.12
		25	$ 13.58
		50	$ 13.04
		100	$ 12.31
		250	$ 11.22
		500	$ 10.50
		1000	$ 9.63

Description

General part information

146-93 Series

8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
