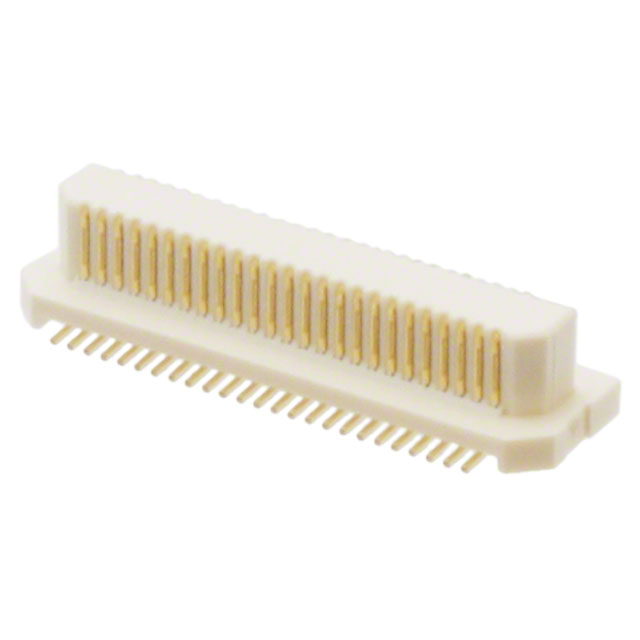

AXK6S50447YG
ActivePanasonic Electric Works
CONN HDR 50POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
AXK6S50447YG
ActivePanasonic Electric Works
CONN HDR 50POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AXK6S50447YG |
|---|---|
| Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold |
| Height Above Board | 0.13 in |
| Height Above Board | 3.3 mm |
| Mated Stacking Heights | 4 mm, 4.5 mm, 7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 50 |
| Number of Rows | 2 |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.38 | |
| 10 | $ 3.07 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.84 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.37 | |||
| 500 | $ 2.30 | |||
| Digi-Reel® | 1 | $ 3.38 | ||
| 10 | $ 3.07 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.84 | |||
| 100 | $ 2.71 | |||
| 250 | $ 2.37 | |||
| 500 | $ 2.30 | |||
| Tape & Reel (TR) | 1500 | $ 1.68 | ||
| 3000 | $ 1.82 | |||
| 4500 | $ 1.77 | |||
Description
General part information
AXK6S50447 Series
50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
