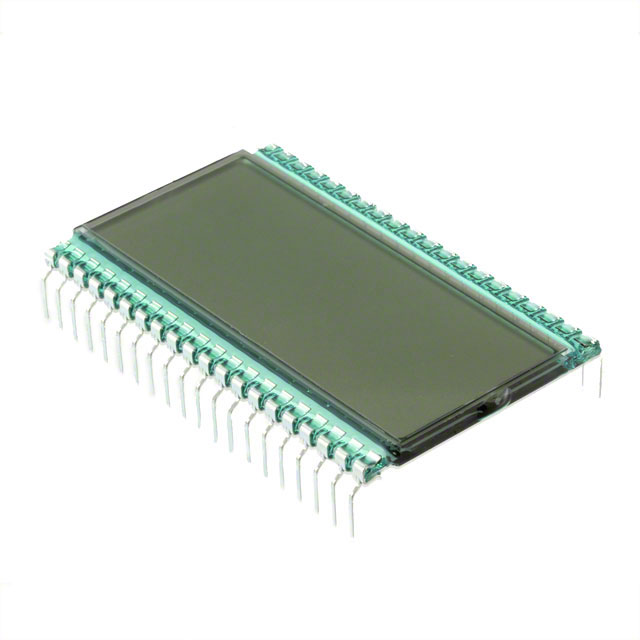

LCD-A3X1C50TR/A

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 3.5 X 1 REFLECTIVE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 3.5 X 1 REFLECTIVE

Technical Specifications

Parameters and characteristics for this part

LCD MOD 4 DIG 3.5 X 1 REFLECTIVE

Part	Display Type	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Number of Characters	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Area [x]	Viewing Area [y]	Character Format	Interface	Background Color	Display Format [x]	Display Format [y]	Display Mode	Backlight	Text Color
Lumex Opto/Components Inc. LCD-A3X1C50TR/A	TN - Twisted Nematic	30.48 mm	2.5 mm	50.8 mm	4	-40 °C	105 ░C	45.72 mm	16.51 mm	7-Segment	Parallel	Gray	3.5	1	Reflective	Without Backlight	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight Parallel 50.80mm x 30.48mm x 2.50mm
