282137-75

Active

Amphenol RF

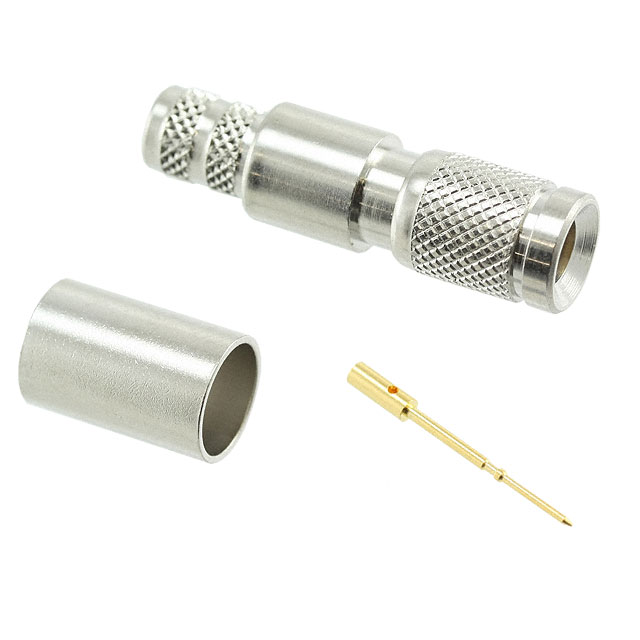

CONN 1.0/2.3 PLG STR 75OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN 1.0/2.3 PLG STR 75OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	282137-75

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-6 Double Braid, Belden 1694A
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	1.0/2.3
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Body Finish	Contact Termination	Number of Ports	Mounting Type	Dielectric Material	Connector Style	Voltage Rating	Impedance	Mating Cycles	Housing Color	Includes	Cable Group	Connector Type	Shield Termination	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Center Contact Plating	Fastening Type	Center Contact Material
Amphenol RF 282137-75	Nickel	Crimp	1	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	1.0/2.3	250 VDC	75 Ohms	500	Silver	1 Connector 1 Contact 1 Ferrule	RG-6 Double Braid Belden 1694A	Male Pin Plug	Crimp	Brass	-65 ░C	165 °C	3 GHz	Gold	Push-Pull	Beryllium Copper Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.41

General part information

1.0/2.3 Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
