EN3C6MCX

Active

Switchcraft Inc.

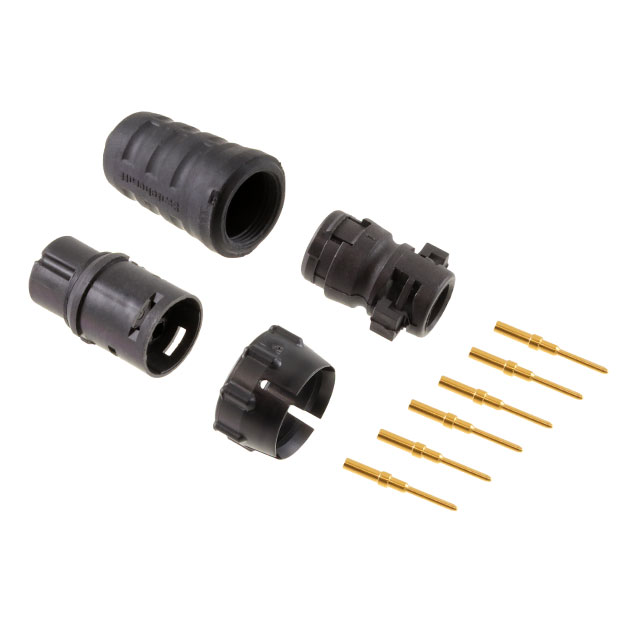

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C6MCX

Active

Switchcraft Inc.

CONN PLUG MALE 6POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C6MCX	EN3C6M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	250 VAC	250 VAC

EN3C6M Series

CONN PLUG MALE 6POS SOLDER CUP

Part	Insert Material	Contact Material	Shielding	Cable Opening [diameter]	Cable Opening [diameter]	Primary Material	Color	Backshell Material, Plating	Mounting Type	Material Flammability Rating	Features	Voltage Rating	Contact Finish - Mating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Connector Type	Applications	Fastening Type	Orientation	Ingress Protection	Termination
Switchcraft Inc. EN3C6MKX	Elastomer	Copper Alloy	Unshielded	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Plastic	Black	Thermoplastic	Free Hanging (In-Line)	UL94 V-0	Backshell, Cable Clamp, Coupling Nut	250 VAC	Gold	6	65 °C	-40 °C	7.5 A	Male Pins, Plug	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Keyed	IP66/IP68
Switchcraft Inc. EN3C6MCX	Elastomer	Copper Alloy	Unshielded	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Plastic	Black	Thermoplastic	Free Hanging (In-Line)	UL94 V-0	Backshell, Cable Clamp, Coupling Nut	250 VAC	Gold	6	65 °C	-40 °C	7.5 A	Male Pins, Plug	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Keyed	IP66/IP68	Crimp
Switchcraft Inc. EN3C6MCKX	Elastomer	Copper Alloy	Unshielded	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Plastic	Black	Thermoplastic	Free Hanging (In-Line)	UL94 V-0	Backshell, Cable Clamp, Coupling Nut	250 VAC	Gold	6	65 °C	-40 °C	7.5 A	Male Pins, Plug	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Keyed	IP66/IP68	Crimp
Switchcraft Inc. EN3C6MX	Elastomer	Copper Alloy	Unshielded	4.06 mm, 6.73 mm	0.16 in, 0.265 in	Plastic	Black	Thermoplastic	Free Hanging (In-Line)	UL94 V-0	Backshell, Cable Clamp, Coupling Nut	250 VAC	Gold	6	65 °C	-40 °C	7.5 A	Male Pins, Plug	General Purpose, Instrumentation, Marine, Medical	Bayonet Lock	Keyed	IP66/IP68

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.20
		10	$ 8.15
		25	$ 7.84
		50	$ 7.53
		100	$ 7.36

Description

General part information

EN3C6M Series

6 Position Circular Connector Plug, Male Pins Crimp
