LEDBR70XD5-PQ

Active

BANNER ENGINEERING

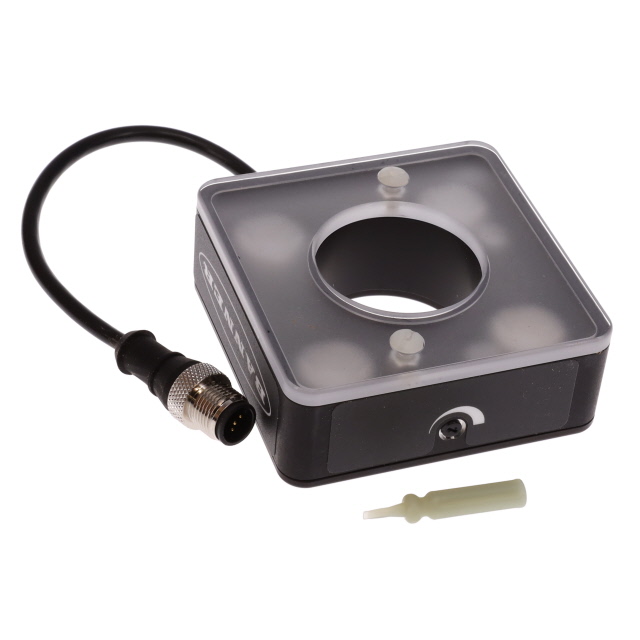

LEDBR70XD5-PQ RING LIGHT HIGH INTENSITY WITH POT - BLUE

Search across all available documentation for this part.

Active

BANNER ENGINEERING

LEDBR70XD5-PQ RING LIGHT HIGH INTENSITY WITH POT - BLUE

Technical Specifications

Parameters and characteristics for this part

Part	Type	Inner Diameter [diameter]	Inner Diameter [diameter]	Width [y]	Width [y]	Length	Length	Color	Width [x]	Width [x]	Height [z]	Height [z]	Outer Diameter [diameter]	Outer Diameter [diameter]
BANNER ENGINEERING LEDBR80X80M	Square	1.799 in	45.7 mm	3.437 in	87.3 mm	3.437 in	87.3 mm	Blue
BANNER ENGINEERING LEDBR70XD5-XQ	Square	1.51 in	38.35 mm			3 in	76.2 mm	Blue	76.2 mm	3 in	29.21 mm	1.15 in
BANNER ENGINEERING LEDBR70XD5-PQ	Square					3 in	76.2 mm	Blue	76.2 mm	3 in	29.21 mm	1.15 in	1.51 in	38.35 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 734.00
Newark	Each	1	$ 747.00

General part information

Square Blue
