3560-0
ActivePomona Electronics
CONNECTOR ADAPTER, BANANA, 1, JACK, SOCKET TIP, 1, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
3560-0
ActivePomona Electronics
CONNECTOR ADAPTER, BANANA, 1, JACK, SOCKET TIP, 1, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3560-0 |
|---|---|
| Color | Black |
| Convert From (Adapter End) | Socket |
| Convert From (Adapter End) [diameter] | 0.04 Dia |
| Convert To (Adapter End) | Banana Jack |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
3560 Series

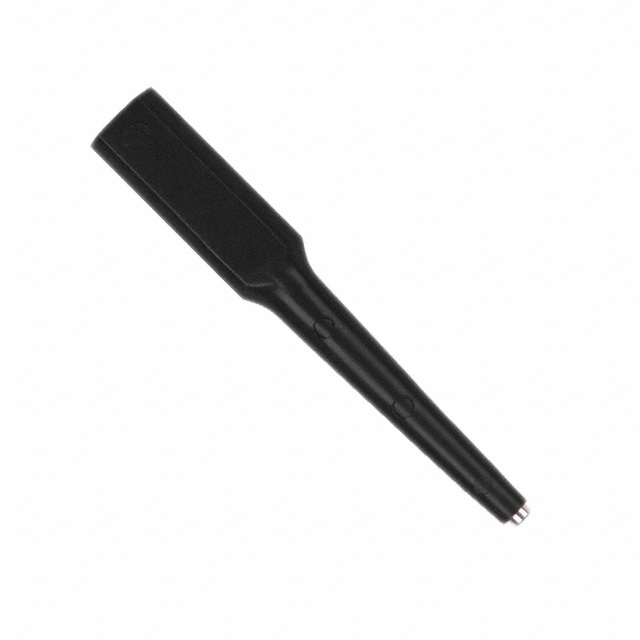

The 3560-0 is a black Banana Jack to 20AWG Pin Socket Test Adapter, ideal test adapter for rapid testing of the hard-to-get to pins of multi-pin connectors. Banana jack is made of brass with bright tin plated finish and polyvinyl chloride (PVC) insulation. Socket is made of copper alloy with gold plated over copper finish.
