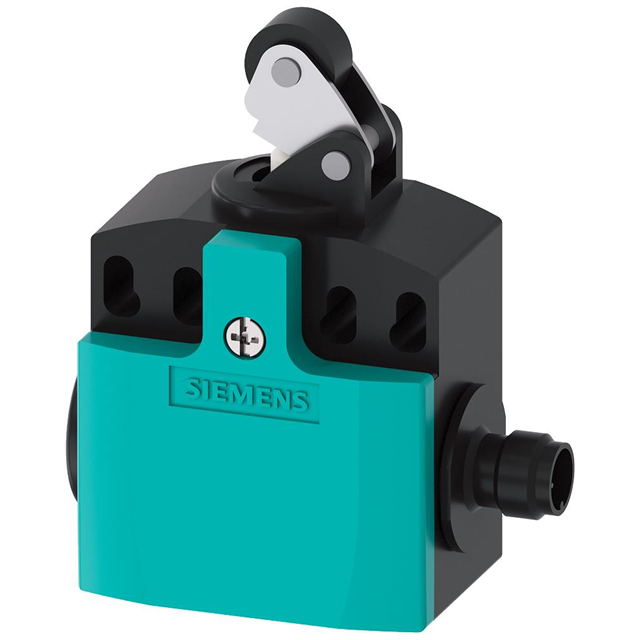

3SE52440LE101AE0
ActiveSiemens
SWITCH LIMIT DPST-NC 4A 125V
Deep-Dive with AI
Search across all available documentation for this part.
3SE52440LE101AE0
ActiveSiemens
SWITCH LIMIT DPST-NC 4A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SE52440LE101AE0 |
|---|---|
| Actuator Type | Top Rotary, Roller |
| Circuit | DPST-NC |
| Current Rating (Amps) | 3 A, 4 A |
| Electrical Life | 100000 Cycles |
| Ingress Protection | IP66/IP67 |
| Mechanical Life | 15000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 1020 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Switch Function | On-Mom |
| Termination Style | Connector |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 229.39 | |
Description
General part information
3SE5244 Series
Switch DPST-NC Chassis Mount
