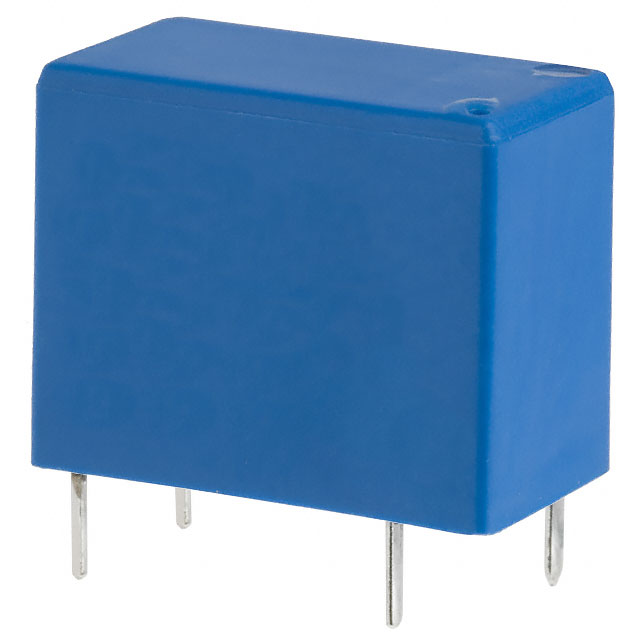

OJE-SS-112DM,000

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 5A 12V

Deep-Dive with AI

Search across all available documentation for this part.

OJE-SS-112DM,000

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 5A 12V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OJE-SS-112DM,000

Approval Agency	TUV, cULus, CQC, VDE
Coil Current	37.5 mA
Coil Insulation	Class F
Coil Resistance	320 Ohms
Coil Type	Non Latching
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	5 A
Load - Max Switching	1385 VA, 150 W
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Must Release Voltage	0.6 VDC
Operate Time	10 ms
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Relay Type	General Purpose
Release Time	4 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	277 VAC, 30 VDC
Termination Style	PC Pin

OJE-SS Series

Part	Coil Voltage	Operate Time	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Contact Rating (Current)	Contact Form	Coil Resistance	Coil Type	Must Operate Voltage	Coil Insulation	Coil Current	Switching Voltage	Release Time	Termination Style	Relay Type	Approval Agency	Contact Material	Mounting Type	Seal Rating
TE Connectivity Potter & Brumfield Relays OJE-SS-112DM,000	12 VDC	10 ms	150 W 1385 VA	-30 ░C	85 °C	0.6 VDC	5 A	SPST-NO (1 Form A)	320 Ohms	Non Latching	8.4 VDC	Class F	37.5 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver Nickel (AgNi)	Through Hole	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJE-SS-105LMH,000	5 VDC	15 ms	240 W 2216 VA	-30 ░C	70 °C	0.25 VDC	8 A	SPST-NO (1 Form A)	125 Ohms	Non Latching	3.75 VDC	Class F	40 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver Cadmium Oxide (AgCdO)	Through Hole	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJE-SS-105LM,000	5 VDC	15 ms	90 W 831 VA	-30 ░C	90 °C	0.25 VDC	3 A	SPST-NO (1 Form A)	125 Ohms	Non Latching	3.75 VDC	Class F	40 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver (Ag)	Through Hole	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJE-SS-103LM,000		15 ms	90 W 831 VA	-30 ░C	90 °C	0.15 VDC	3 A	SPST-NO (1 Form A)	45 Ohms	Non Latching	2.25 VDC	Class F	66.7 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver (Ag)	Through Hole	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJE-SS-124HM,000	24 VDC	10 ms	300 W 2770 VA	-30 ░C	70 °C	1.2 VDC	10 A	SPST-NO (1 Form A)	1280 Ohms	Non Latching	16.8 VDC	Class F	18.8 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver (Ag)	Through Hole	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJE-SS-112HM,000	12 VDC	10 ms	300 W 2770 VA	-30 ░C	70 °C	0.6 VDC	10 A	SPST-NO (1 Form A)	320 Ohms	Non Latching	8.4 VDC	Class F	37.5 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver (Ag)	Through Hole	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJE-SS-112LM,000	12 VDC	15 ms	90 W 831 VA	-30 ░C	90 °C	0.6 VDC	3 A	SPST-NO (1 Form A)	720 Ohms	Non Latching	9 VDC	Class F	16.7 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver (Ag)	Through Hole	Sealed - Flux Protection
TE Connectivity Potter & Brumfield Relays OJE-SS-109LMH,000	9 VDC	15 ms	240 W 2216 VA	-30 ░C	70 °C	0.45 VDC	8 A	SPST-NO (1 Form A)	405 Ohms	Non Latching	6.75 VDC	Class F	22.5 mA	30 VDC 277 VAC	4 ms	PC Pin	General Purpose	CQC cULus TUV VDE	Silver Cadmium Oxide (AgCdO)	Through Hole	Sealed - Flux Protection

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.38
		10	$ 1.30
		25	$ 1.15
		50	$ 1.09
		100	$ 1.04
		300	$ 0.92
		500	$ 0.86
		1000	$ 0.81
		5000	$ 0.78

Description

General part information

OJE-SS Series

General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
