CMH322522-1R5KL

Active

Bourns Inc.

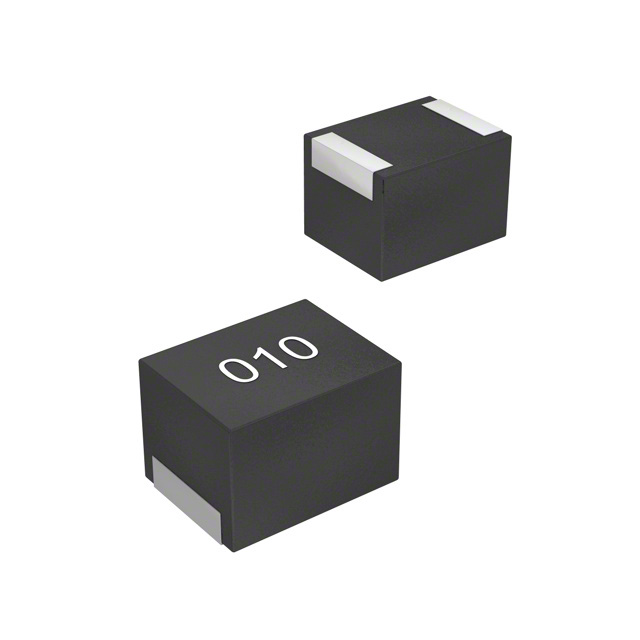

FIXED IND 1.5UH 370MA 850MOHM SM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMH322522-1R5KL

Active

Bourns Inc.

FIXED IND 1.5UH 370MA 850MOHM SM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMH322522-1R5KL

Current Rating (Amps)	370 mA
DC Resistance (DCR) [Max]	850 mOhm
Frequency - Self Resonant	85 MHz
Height - Seated (Max) [Max] [z]	0.094 "
Height - Seated (Max) [Max] [z]	2.4 mm
Inductance	1.5 µH
Inductance Frequency - Test	7.96 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	1210
Package / Case	3225 Metric
Q @ Freq	7.96 MHz, 30
Shielding	Shielded
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	1210
Tolerance	10 %
Type	Wirewound, Drum Core

CMH322522 Series

Part	Current Rating (Amps)	Type	Package / Case	Package / Case	Tolerance	Mounting Type	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Q @ Freq	Supplier Device Package	Shielding	Frequency - Self Resonant	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	Material - Core
Bourns Inc. CMH322522-3R3KL	0.26 A	Drum Core Wirewound	1210	3225 Metric	10 %	Surface Mount	7.96 MHz	1.2 Ohm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	7.96 MHz 30	1210	Shielded	55 MHz	-55 °C	125 °C	3.3 µH	Ferrite
Bourns Inc. CMH322522-R68ML	450 mA	Drum Core Wirewound	1210	3225 Metric	20 %	Surface Mount	25.2 MHz		0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	25.2 MHz 30	1210	Shielded	160 MHz	-55 °C	125 °C	0.68 µH	Ferrite
Bourns Inc. CMH322522-820KL	45 mA	Drum Core Wirewound	1210	3225 Metric	10 %	Surface Mount	2.52 MHz	10 Ohm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	2.52 MHz 30	1210	Shielded	10 MHz	-55 °C	125 °C	82 µH	Ferrite
Bourns Inc. CMH322522-181KL	60 mA	Drum Core Wirewound	1210	3225 Metric	10 %	Surface Mount	796 kHz	17 Ohm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	20 796 kHz	1210	Shielded	6 MHz	-55 °C	125 °C	180 µH	Ferrite
Bourns Inc. CMH322522-R47ML	450 mA	Drum Core Wirewound	1210	3225 Metric	20 %	Surface Mount	25.2 MHz	500 mOhm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	25.2 MHz 30	1210	Shielded	220 MHz	-55 °C	125 °C	470 nH	Ferrite
Bourns Inc. CMH322522-2R7KL	0.29 A	Drum Core Wirewound	1210	3225 Metric	10 %	Surface Mount	7.96 MHz	1.1 Ohm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	7.96 MHz 30	1210	Shielded		-55 °C	125 °C	2.7 µH	Ferrite
Bourns Inc. CMH322522-100KL	150 mA	Drum Core Wirewound	1210	3225 Metric	10 %	Surface Mount	2.52 MHz	2.1 Ohm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	2.52 MHz 30	1210	Shielded	28 MHz	-55 °C	125 °C	10 µH	Ferrite
Bourns Inc. CMH322522-1R5KL	370 mA	Drum Core Wirewound	1210	3225 Metric	10 %	Surface Mount	7.96 MHz	850 mOhm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	7.96 MHz 30	1210	Shielded	85 MHz	-55 °C	125 °C	1.5 µH	Ferrite
Bourns Inc. CMH322522-101KL	40 mA	Drum Core Wirewound	1210	3225 Metric	10 %	Surface Mount	796 kHz	10 Ohm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	20 796 kHz	1210	Shielded	9 MHz	-55 °C	125 °C	100 µH	Ferrite
Bourns Inc. CMH322522-68NML	450 mA	Drum Core Wirewound	1210	3225 Metric	20 %	Surface Mount	100 MHz	360 mOhm	0.094 "	2.4 mm	3.2 mm	2.5 mm	0.126 in	0.098 in	27 100 MHz	1210	Shielded	1 GHz	-55 °C	125 °C	68 nH	Ferrite

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 0.20

Description

General part information

CMH322522 Series

1.5 µH Shielded Drum Core, Wirewound Inductor 370 mA 850mOhm Max 1210 (3225 Metric)
