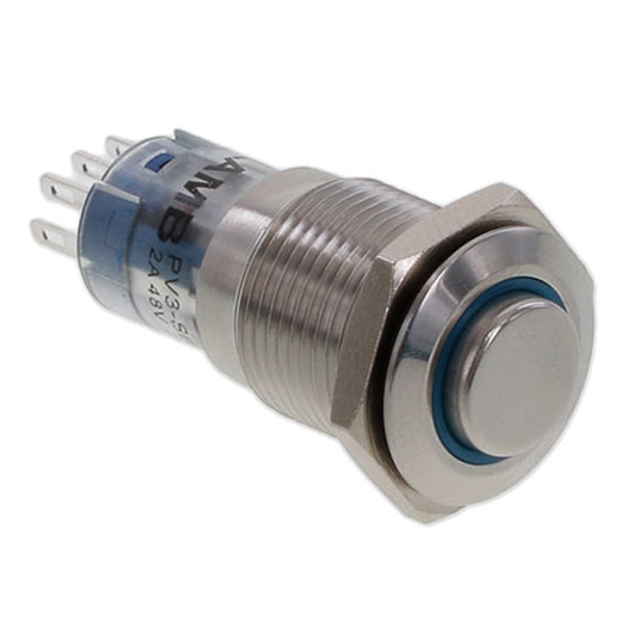

PV3WH2B0SS-343
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 48V
Deep-Dive with AI
Search across all available documentation for this part.
PV3WH2B0SS-343
ActiveE-Switch
SWITCH PUSHBUTTON SPDT 2A 48V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PV3WH2B0SS-343 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 2 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 6 V |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 16 mm |
| Switch Function | On-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.11 | |
| 10 | $ 13.90 | |||
| 25 | $ 13.10 | |||
| 50 | $ 12.53 | |||
| 100 | $ 11.98 | |||
| 250 | $ 11.29 | |||
| 500 | $ 10.80 | |||
Description
General part information
PV3WH2 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Documents
Technical documentation and resources
No documents available
