Specification	PHE450RB5470JR06

Applications	Switching, High Frequency
Capacitance	47 nF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max)	0.689 in
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Radial
Size / Dimension Length	0.709 in
Size / Dimension Width	0.374 in
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	650 VAC
Voltage Rating - DC	1600 V

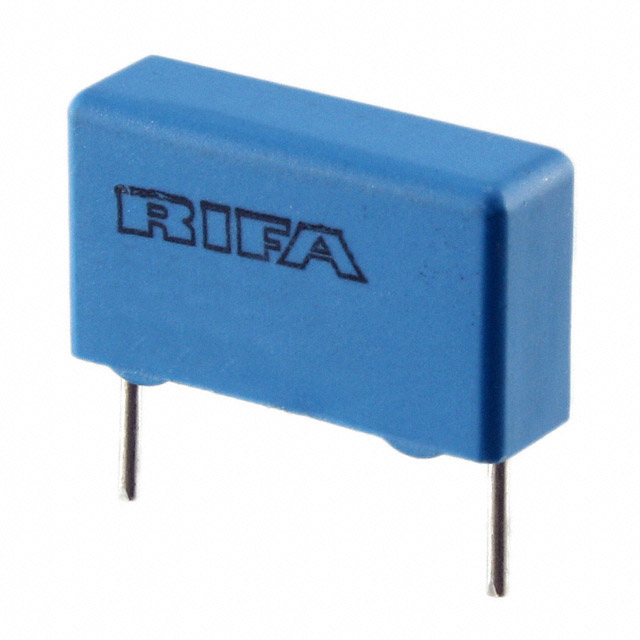

PHE450 Series

...

Part	Termination	Mounting Type	Voltage Rating - AC	Operating Temperature (Min)	Operating Temperature (Max)	Package / Case	Height - Seated (Max)	Size / Dimension Length	Size / Dimension Width	Dielectric Material	Applications	Capacitance	Voltage Rating - DC	Lead Spacing	Tolerance
KEMET PHE450KB6100JR17	PC Pins	Through Hole	250 V	-55 °C	105 °C	Radial	0.492 in	0.709 in	0.256 in	Metallized Polypropylene (PP)	High Frequency Switching	0.1 µF	400 V	0.591 in	5 %
KEMET PHE450SD5560JR06L2	PC Pins	Through Hole	700 V	-55 °C	105 °C	Radial	0.748 in	1.024 in	0.413 in	Metallized Polypropylene (PP)	High Frequency Switching	56 nF	2 kVDC	0.886 in	5 %
KEMET PHE450KK5270JR05	PC Pins	Through Hole	250 V	-55 °C	105 °C	Radial	0.433 in	0.394 in	0.197 in	Metallized Polypropylene (PP)	High Frequency Switching	0.027 µF	400 V	0.295 in	5 %
KEMET PHE450KA5270JR05	PC Pins	Through Hole	250 V	-55 °C	105 °C	Radial	0.354 in	0.512 in	0.157 in	Metallized Polypropylene (PP)	High Frequency Switching	0.027 µF	400 V	0.394 in	5 %
KEMET PHE450KK4470JR05	PC Pins	Through Hole	250 V	-55 °C	105 °C	Radial	0.315 in	0.394 in	0.157 in	Metallized Polypropylene (PP)	High Frequency Switching	4700 pF	400 V	0.295 in	5 %
KEMET PHE450HB6330JR06	PC Pins	Through Hole	180 V	-55 °C	105 °C	Radial	0.591 in	0.709 in	0.315 in	Metallized Polypropylene (PP)	High Frequency Switching	0.33 µF	250 VDC	0.591 in	5 %
KEMET PHE450PB4820JR06	PC Pins	Through Hole	600 VAC	-55 °C	105 °C	Radial	0.413 in	0.709 in	0.217 in	Metallized Polypropylene (PP)	High Frequency Switching	8200 pF	1 kV	0.591 in	5 %
KEMET PHE450KK3820JR05	PC Pins	Through Hole	250 V	-55 °C	105 °C	Radial	0.315 in	0.394 in	0.157 in	Metallized Polypropylene (PP)	High Frequency Switching	820 pF	400 V	0.295 in	5 %
KEMET PHE450MK4560JR05	PC Pins	Through Hole	300 V	-55 °C	105 °C	Radial	0.315 in	0.394 in	0.157 in	Metallized Polypropylene (PP)	High Frequency Switching	5600 pF	630 V	0.295 in	5 %
KEMET PHE450PK3560JR05	PC Pins	Through Hole	600 VAC	-55 °C	105 °C	Radial	0.315 in	0.394 in	0.157 in	Metallized Polypropylene (PP)	High Frequency Switching	560 pF	1 kV	0.295 in	5 %
