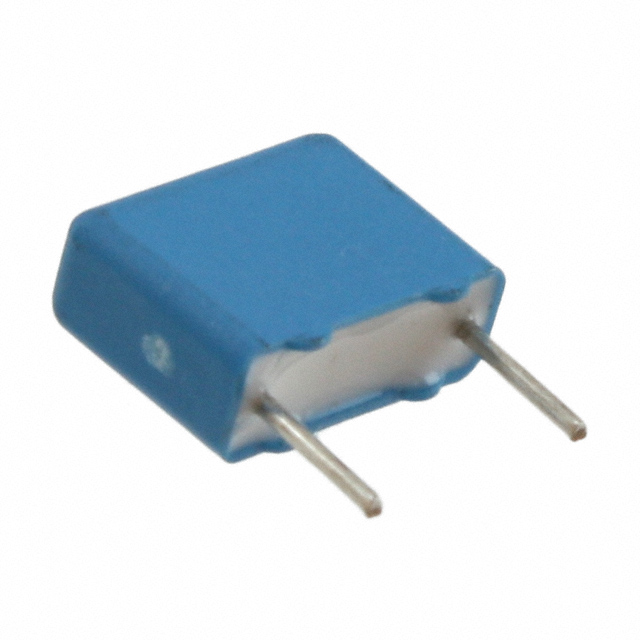

PHE450KK3820JR05

Active

KEMET

CAP FILM 820PF 5% 400VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Change Notice EN

PHE450KK3820JR05

Active

KEMET

CAP FILM 820PF 5% 400VDC RADIAL

Deep-Dive with AI

DocumentsProduct Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE450KK3820JR05

Applications	Switching, High Frequency
Capacitance	820 pF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	8 mm
Height - Seated (Max) [Max] [z]	0.315 in
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Size / Dimension [x]	0.394 "
Size / Dimension [x]	10 mm
Size / Dimension [y]	0.157 in
Size / Dimension [y]	4 mm
Termination	PC Pins
Tolerance	5 %
Voltage Rating - AC	250 V
Voltage Rating - DC	400 V

PHE450 Series

...

Part	Tolerance	Applications	Package / Case	Lead Spacing	Lead Spacing	Mounting Type	Voltage Rating - DC	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Dielectric Material	Capacitance	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHE450KB6100JR17	5 %	High Frequency Switching	Radial	15 mm	0.591 in	Through Hole	400 V	0.492 in	12.5 mm	Metallized Polypropylene (PP)	100000 pF	105 ░C	-55 °C	250 V	PC Pins	0.709 in	0.256 in	6.5 mm	18 mm
KEMET PHE450SD5560JR06L2	5 %	High Frequency Switching	Radial	22.5 mm	0.886 in	Through Hole	2 kVDC	0.748 in	19 mm	Metallized Polypropylene (PP)	0.056 µF	105 ░C	-55 °C	700 V	PC Pins	1.024 in	0.413 in	10.5 mm	26 mm	2 kV
KEMET PHE450KK4470JR05	5 %	High Frequency Switching	Radial	7.5 mm	0.295 in	Through Hole	400 V			Metallized Polypropylene (PP)	4700 pF	105 ░C	-55 °C	250 V	PC Pins	0.394 "	0.157 in	4 mm	10 mm		8 mm	0.315 in
KEMET PHE450KK3820JR05	5 %	High Frequency Switching	Radial	7.5 mm	0.295 in	Through Hole	400 V			Metallized Polypropylene (PP)	820 pF	105 ░C	-55 °C	250 V	PC Pins	0.394 "	0.157 in	4 mm	10 mm		8 mm	0.315 in
KEMET PHE450MK4560JR05	5 %	High Frequency Switching	Radial	7.5 mm	0.295 in	Through Hole				Metallized Polypropylene (PP)	5600 pF	105 ░C	-55 °C	300 V	PC Pins	0.394 "	0.157 in	4 mm	10 mm		8 mm	0.315 in
KEMET PHE450PK3560JR05	5 %	High Frequency Switching	Radial	7.5 mm	0.295 in	Through Hole	1 kVDC			Metallized Polypropylene (PP)	560 pF	105 ░C	-55 °C	600 V	PC Pins	0.394 "	0.157 in	4 mm	10 mm	1 kV	8 mm	0.315 in
KEMET PHE450MK4390JR05	5 %	High Frequency Switching	Radial	7.5 mm	0.295 in	Through Hole				Metallized Polypropylene (PP)	3900 pF	105 ░C	-55 °C	300 V	PC Pins	0.394 "	0.157 in	4 mm	10 mm		8 mm	0.315 in
KEMET PHE450MB5680JR06	5 %	High Frequency Switching	Radial	15 mm	0.591 in	Through Hole				Metallized Polypropylene (PP)	0.068 µF	105 ░C	-55 °C	300 V	PC Pins	0.709 in	0.295 in	7.5 mm	18 mm		14.5 mm	0.571 in
KEMET PHE450KK3390JR05	5 %	High Frequency Switching	Radial	7.5 mm	0.295 in	Through Hole	400 V			Metallized Polypropylene (PP)	390 pF	105 ░C	-55 °C	250 V	PC Pins	0.394 "	0.157 in	4 mm	10 mm		8 mm	0.315 in
KEMET PHE450MA5270JR05	5 %	High Frequency Switching	Radial	10 mm	0.394 in	Through Hole				Metallized Polypropylene (PP)	0.027 µF	105 ░C	-55 °C	300 V	PC Pins	0.512 in	0.197 "	5 mm	13 mm		11 mm	0.433 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 0.63
		10	$ 0.44
		50	$ 0.37
		100	$ 0.30
		500	$ 0.25
		1000	$ 0.21
		3000	$ 0.20
		5000	$ 0.19
Newark	Each	2500	$ 0.18

Description

General part information

PHE450 Series

820 pF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial
